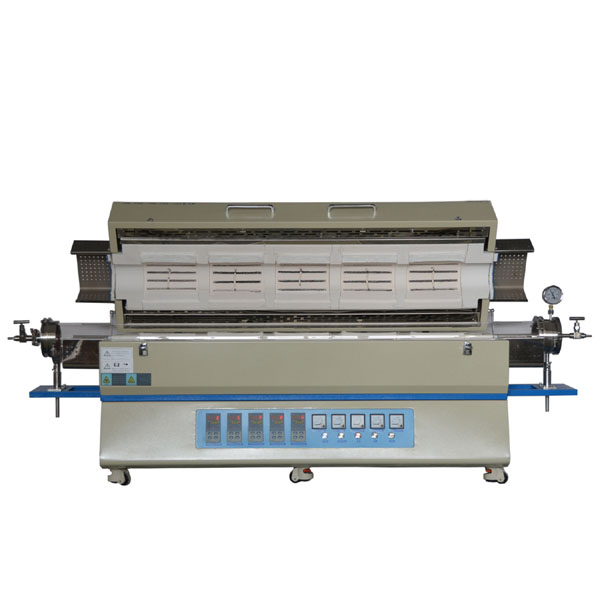

Model

TCHTL1200V-50

  TCHTL1200V-60

TCHTL1200V-80

  TCHTL1200V-100

Power

5.4KW

   5.4KW

5.4KW

   5.4KW

Quartz tube

50*2000mm

60*2000mm

80*2000mm

100*2000mm

Voltage

380V, 50/60HZ ( three phase)

Temp.  controller

· PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate and dwell time.

· Built-in overheating & broken thermocouple protection.

· Over-temperature protection and alarm allows for operation without attendant(s).

· +/- 1 ºC temperature accuracy.

· Five K-type thermocouples (one for each zone).

Heating elements

Resistance wire

Temp. accuracy

 +/- 1 ℃

SCR

106/16E

Max. temp.

 1200 ℃

Working temp.

 1100 ℃

Heating rate

 ≤30 ℃/ Min , suggest ≤15  ℃/ Min

Thermocouple

K type

Heating zone length

205+205+205+205+205mm

Total Constant heating zone

900mm

surface temp.

≤45℃

Warranty

One year limited warranty

Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty
