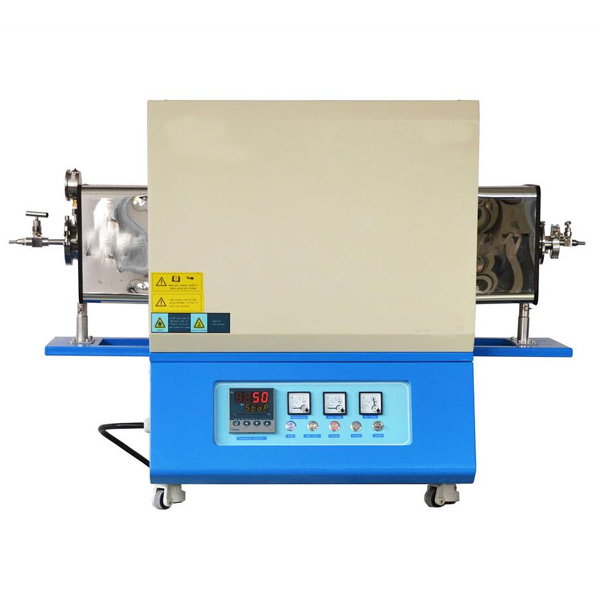

Model

TCHTL1700-I-60

TCHTL1700-I-80

TCHTL1700-I-100

Tube size(mm)

Φ60X1000

Φ80X1000

Φ100X1000

Power

5Kw

5Kw

6Kw

Max. temperature

1700℃

Working temp.

1600℃

Heating rate

≤20℃/min   suggest：≤10℃/min

Heating zone length

300mm

Tube material

High purity alumina tube

Heating elements

1800 MoSi2 Heating Element

Thermocouple

B type

Surface temperature

≤45℃

Temperature controller

PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate and dwell time.

Built-in over temperature alarm and protection allows for operation without an attendant.

Accuracy: +/- 1°C

Voltage

204-240V, 50/60HZ

Warranty

One-year limited manufacturer warranty with lifetime support (consumable parts such as furnace liner, processing tubes, and O-rings are not covered by the warranty).
