Model

PC-20J

Pressure range

0-20 Ton

Piston diameter

110mm(d)

Max. piston stroke

40mm(T)

Protective door

Plexiglass

Ambient temperature

10℃-40℃

Isostatic pressure

Isostatic vessel (M×N)

0-300MPa

Φ30×150mm

0-500MPa

Φ22×150mm

Voltage

220V 50HZ/60HZ or 110V 60HZ

Dimension (L×W×H)

305×195×630mm

Net weight

100kg

Packing information

405×330×750mm/112kg

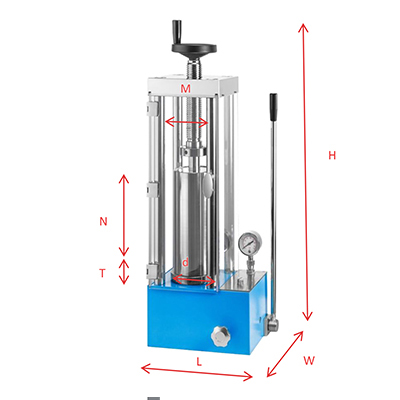

Diagram of the press
