Model

PP-2S

Pressure range

0.01 -2 T

Pressure display accuracy

0.01 Tons

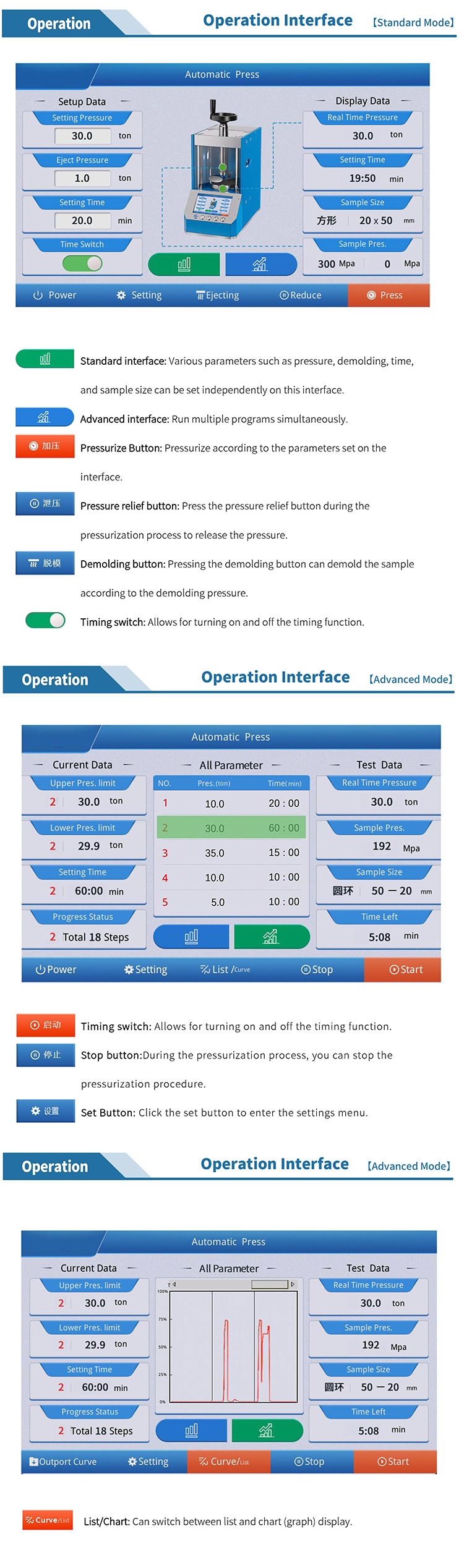

Display panel

5” touch screen panel

Metal button /key

Sliver-plated contacts, with a service life of over 100,000 cycles.

Pressure safety

The device has automatic pressure overload protection.

Limited switch

The oil cylinder automatically releases pressure when it reaches the limit height.

Curve graph

Can display each operation curve graph and support U disk download Excel file

Program control

up to 18 segments of program control

Speed adjustment

Pressure increasing speed is adjustable

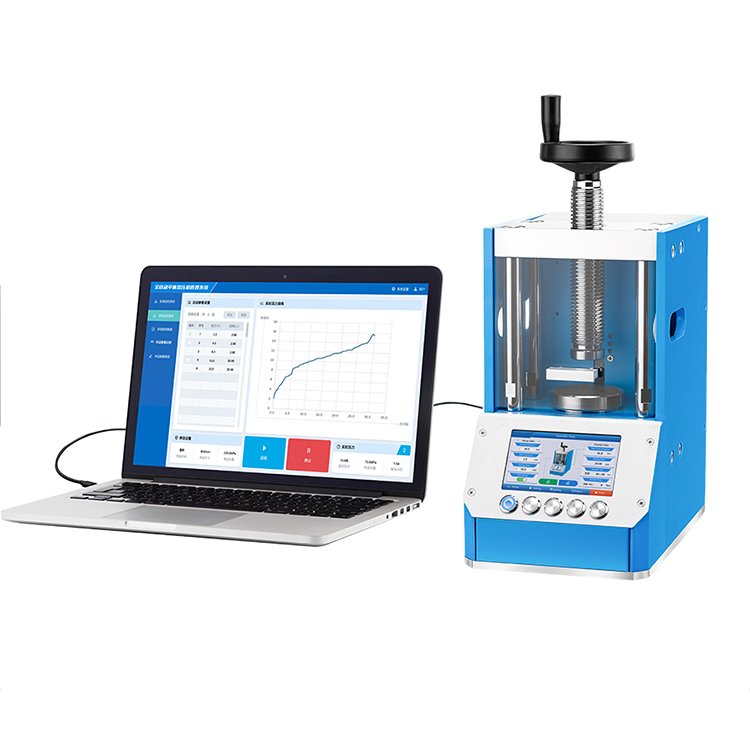

Remote control

A computer is required to analyze, compare, modify, and export data.

Working space

110×140 mm （M×N）

Voltage

110 V / 220 V

Power

500W

Dimension

Product size: 185×320×360mm (L×W×H)

Net weight: 50kg

Packing size:405×420×550mm

Gross weight:60kg

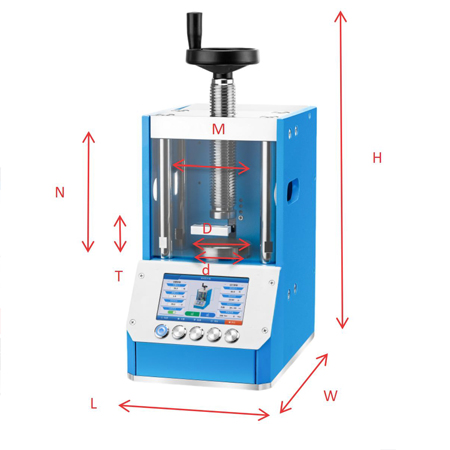

Dimensional diagram
