BASIC INFO
Parameters:
|
Model |
PMF-E |
|
Sample shape |
|
|
Die material |
Alloy tool steel: Cr12MoV |
|
Indenter hardness |
HRC60-HRC62 |
|
Sample size |
50×50mm/ 60×60mm/70×70mm(M) |
|
Cavity depth |
55mm /60mm/65mm(N) |
|
Dimensions |
Φ98×150mm/Φ118×180mm /Φ138×180mm(L×H) |
|
Weight |
7.3Kg/11.4Kg/20Kg |
|

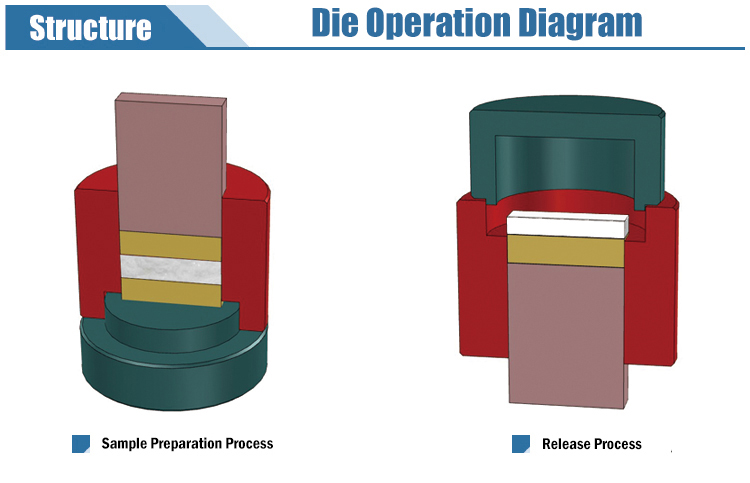

Diagram of press die |
 |
Note:Customized size is available, we can design it according to your need.
