Model

PCH-600F

Heating temperature

RT-300℃

RT-500℃

Power

3 KW

5 KW

Pressure range

0-40T

Pressure Accuracy

0.01 Ton

Temperature Control accuracy

0.1℃

Piston diameter

Chrome-plated oil cylinder Φ130mm(d)

Integral structure

No sealing connection, oil leakage reduced

Constant Temperature Time

≥1S

Display Screen

7” Touch Screen

Heating method

Multi-stage Heating or Cooling Program

Heating insulation method

Imported Heating insulation board

Cooling method

Air / Water cooling

(water chiller is optional)

Heating area

Double platens heating 400×400mm (M×N)

Working space

400×220mm

Controlling part

Dimension: 490×395×235mm (L×W×H)

Net weight: 9.5Kg

Gross weight :26.5 Kg

Pressing part dimension

900×700×1000mm (K×P×H)

Net weight :580Kg

Gross weight: 632Kg

Water chiller

Dimension : 550×340×430mm

Net weight : 11kg

Voltage

220V / 380V

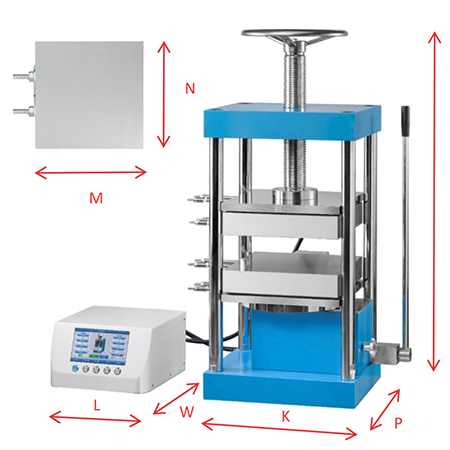

Diagram of hydraulic press
