BASIC INFO
Parameter
|
Model |
PMG |
|
Sample shape |
|
|
Die material |
Alloy tool steel: Cr12MoV |
|
Indenter Hardness |
HRC60-HRC62 |
|
Sample size |
Φ32mm /Φ40mm (d) |
|
Cavity depth |
45mm (N) |
|
Dimension |
Φ73×133mm (L×H) |
|
Weight |
3.2Kg |
|

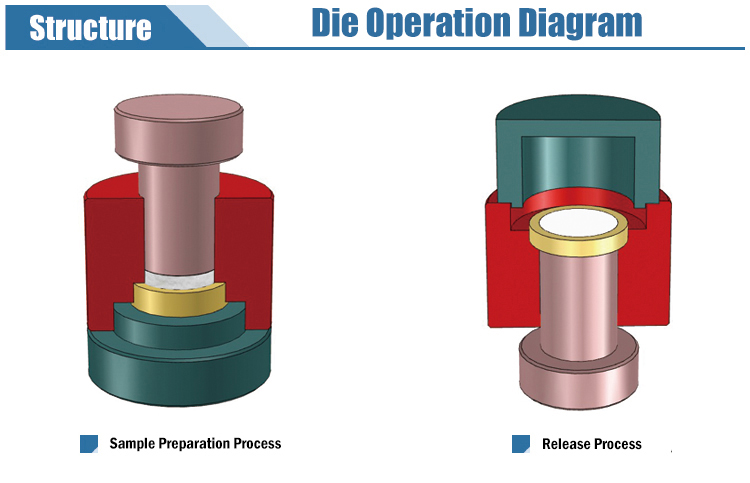

Diagram of the pressing die |
|
Note:Customized size is available, we can design it according to your need.
