Material

Nickel 99.99%

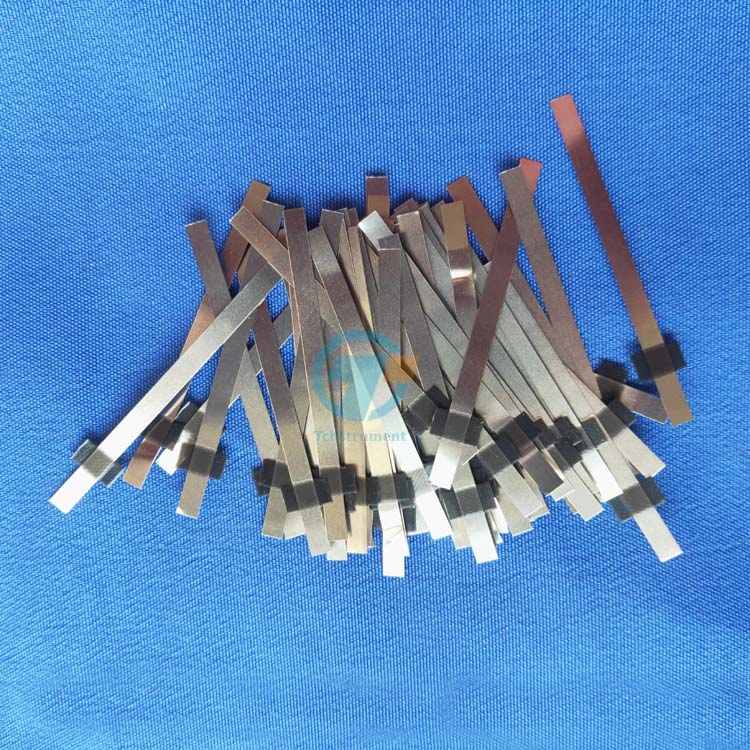

Adhesive Polymer Tape on the tab allows for immediate hot sealing

Length

61mm

Width

4mm

Thickness

0.09mm in Nickel Tab

0.28mm in Nickel Tab with Adhesive Polymer Tape

Max. Loading Current

3A

Package

    20 pcs/box

Net Weight

160mg/pcs

Gross Wight

18g (Tabs with Box)

Application

1. Connect to cathode current collector as polymer battery positive terminal
2. Suggested Sealing Method: (parameter below may vary from case to case)
    - Soft type heat-sealing blade (Blade with rubber)
    - 180-200C for upper blade
    - 160-180C for lower blade
    - 40PSI (0.3Mpa)
    - 3 seconds heating time
Adhesive Polymer Tape on the tab allows for immediate hot sealing
