Model

PP-600F-F

Heating temperature

RT-300℃

RT-500℃

Power

4 KW

6 KW

Pressure range

0.01-50T

Pressure Accuracy

0.01 Ton

Metal button

Silver-plated contacted , with a service life of over 100,000 times.

Safety protection cover

Acrylic protective door (automatic power-off when opened) + emergency stop button, dual protection for safer operation.

Curved graph pattern

It can display the operation curve graph for each time and supports downloading Excel files via USB drive.

Pressure control

Up to 18 program controls, including pressure, temperature, and water cooling, can all be controlled independently.

Water cooling

Support manual activation of the water cooling method for cooling, and automatic rapid cooling can be also achieved in multiple program segments.

(water chiller is optional)

Speed Regulation

The boosting speed can be adjusted, and the heating speed cab be regulated.

Romote control

A computer needs to be selected and equipped, it can perform functionns such as data analysis, comparison, modification and export.

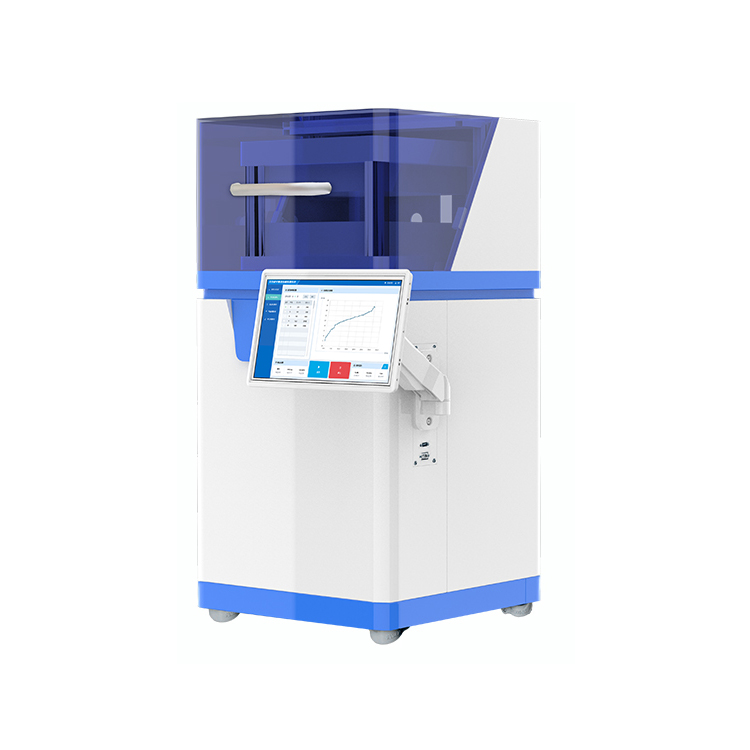

Display Screen

7” Touch Screen

Heating method

Multi-stage Heating or Cooling Program

Heating insulation method

Imported Heating insulation board

Cooling method

Air / Water cooling

(water chiller is optional)

Heating area

Double platens heating 400×400mm (M×N)

Working space

420×90mm

Dimension

Machine：680×680×1280mm (L×W×H)

Net weight: 1130Kg

Packing Size:900×800×1400mm (L×W×H)

Gross weight :1200Kg

Water chiller

Dimension : 550×340×430mm

Net weight : 25kg

Voltage

220V

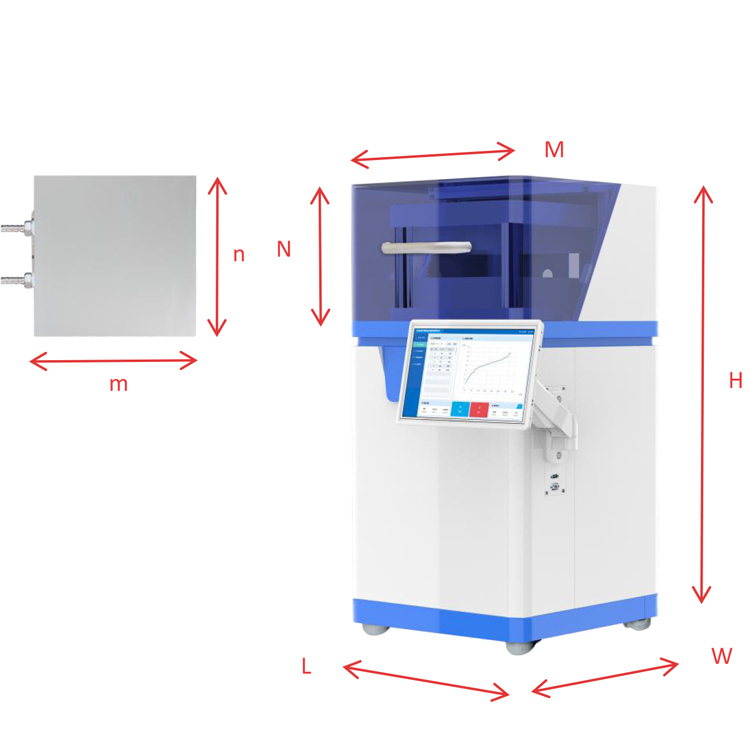

Diagram of hydraulic press
