Model

PP-600C

Heating temperature

RT-300℃

RT-500℃

RT-800℃

Power

0.6 KW

1 KW

3.5 KW

Pressure range

0-5T

Pressure Accuracy

0.1 Ton

Temperature Control accuracy

0.1℃

Pressurization process

20 stage programmed pressurization with pressure profile display

Pressure holding time

Each stage can last up to 32768 seconds , or work indefinitely without timing.

Constant Temperature Time

≥1S

Display Screen

7” Touch Screen

Heating method

Multi-stage Heating or Cooling Program

Heating insulation method

Imported Heating insulation board

Cooling method

Air / Water cooling

(water chiller is optional)

Heating area

Double platens heating120×120mm (M×N)

Working space

140×50mm

Dimension

Machine：182×306×460mm (L×W×H)

Net weight: 75Kg

Packing Size:405×330×550mm (L×W×H)

Gross weight :84Kg

Water chiller

Dimension : 550×340×430mm

Net weight : 11kg

Voltage

110V / 220V

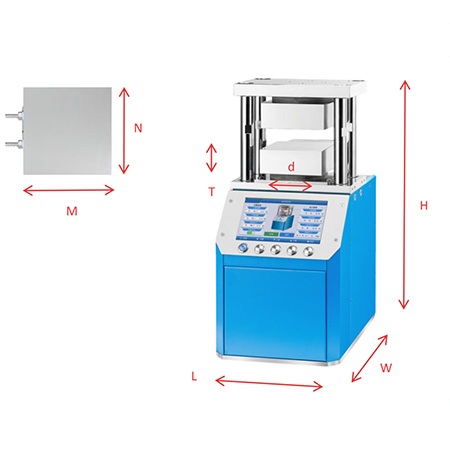

Diagram of hydraulic press
