Model

PP-600ZC

Heating temperature

RT-300℃

RT-500℃

RT-800℃

Power

1.6 KW

2 KW

4.5 KW

Pressure range

0.01-5T

Pressure Accuracy

0.01 Ton

Metal button

Silver-plated contacted , with a service life of over 100,000 times.

Safety protection cover

Acrylic protective door (automatic power-off when opened) + emergency stop button, dual protection for safer operation.

Curved graph pattern

It can display the operation curve graph for each time and supports downloading Excel files via USB drive.

Pressure control

Up to 18 program controls, including pressure, temperature, and water cooling, can all be controlled idependently.

Water cooling

Support manual activation of the water cooling method for cooling, and automatic rapid cooling can be also achived in multiple program segments.

(water chiller is optional)

Speed Regulation

The boosting speed can be adjusted, and the heating speed cab be regulated.

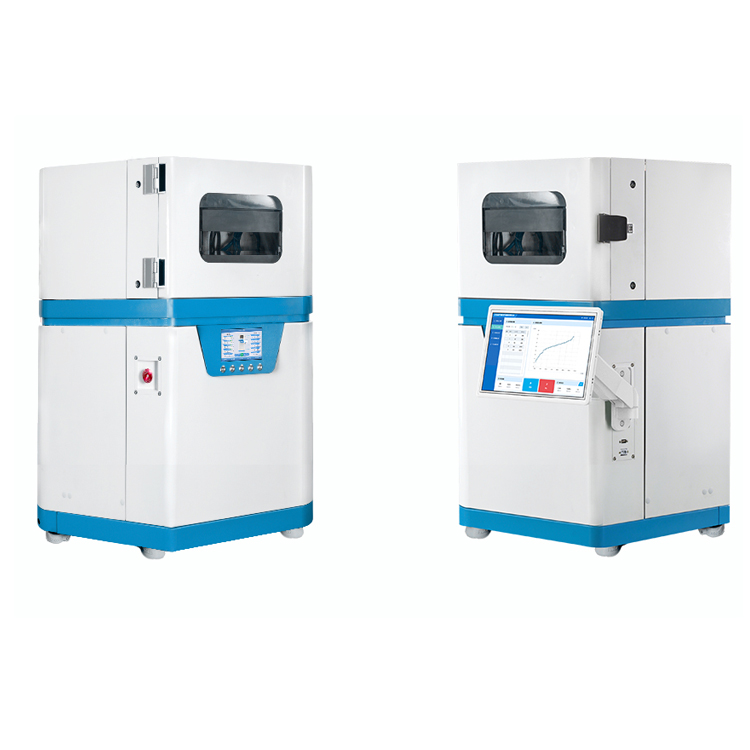

Romote control

A computer needs to be selected and equipped, it can perform functions such as data analysis, comparison, modification and export.

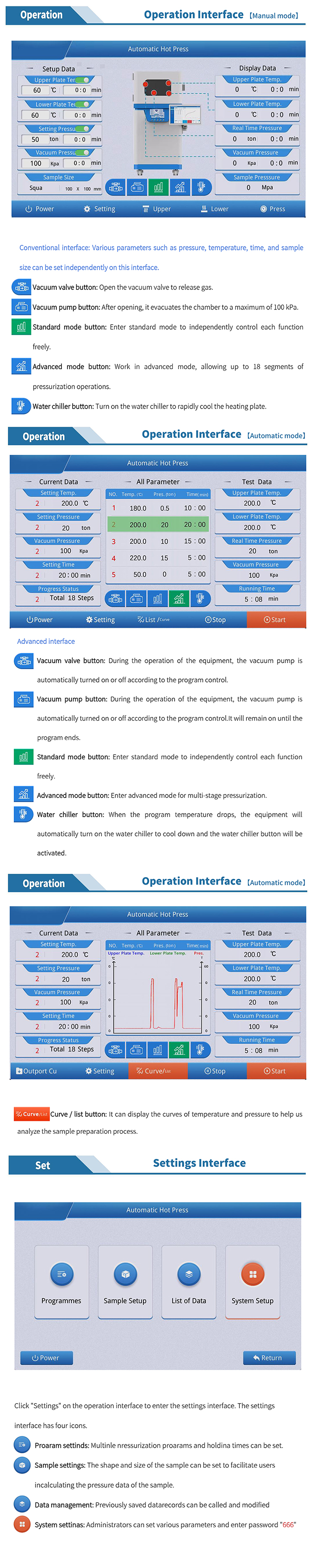

Display Screen

7” Touch Screen

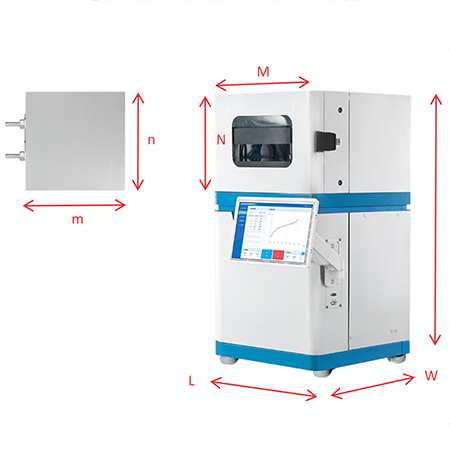

Heating area

Double platens heating 120×120mm (m×n)

Working space

130×55mm

Chamber hatch size

300×200mm (M×N)

Dimension

Machine：480×560×750mm (L×W×H)

Net weight: 280Kg

Packing Size:900×800×1400mm (L×W×H)

Gross weight :350Kg

Vacuum pump

Dimension : 490×230×340mm

Net weight : 14kg

Voltage

110V / 220V

Diagram of hydraulic press
