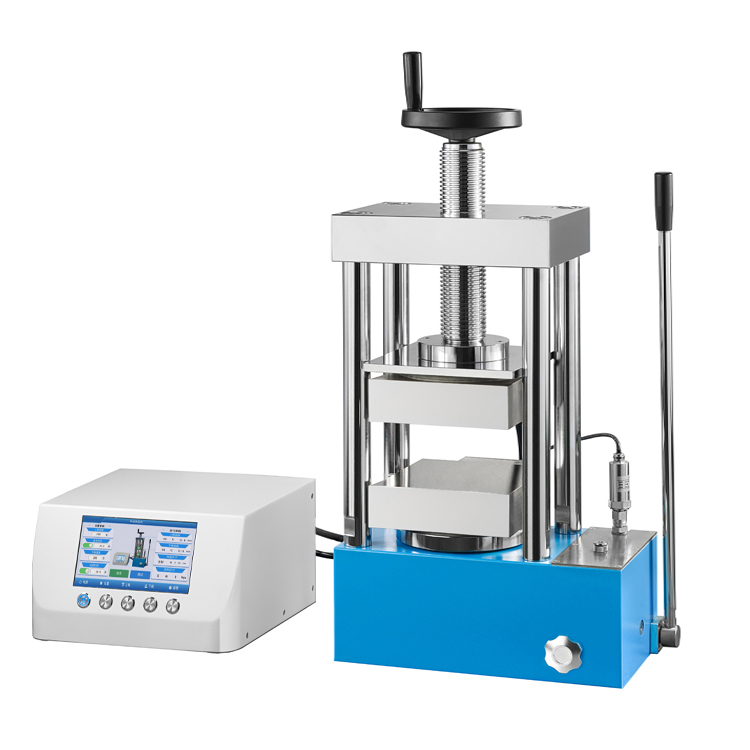

Model

PCH-600D1

Heating temperature

RT-300℃

RT-500℃

RT-800℃

Power

1.2 KW

2.4 KW

5 KW

Pressure range

0-60T

Pressure Accuracy

0.01 Ton

Temperature Control accuracy

0.1℃

Piston diameter

Chrome-plated oil cylinder Φ150mm(d)

Integral structure

No sealing connection, oil leakage reduced

Constant Temperature Time

≥1S

Display Screen

7” Touch Screen

Heating method

Multi-stage Heating or Cooling Program

Heating insulation method

Imported Heating insulation board

Cooling method

Air / Water cooling

(water chiller is optional)

Heating area

Double platens heating 180×180mm (M×N)

Working space

180×190mm

Controlling part

Dimension: 490×395×235mm (L×W×H)

Net weight: 9.5Kg

Gross weight :26.5 Kg

Pressing part dimension

750×300×720mm (K×P×H)

Net weight :180Kg

Gross weight: 2328Kg

Water chiller

Dimension : 550×340×430mm

Net weight : 11kg

Voltage

110V / 220V

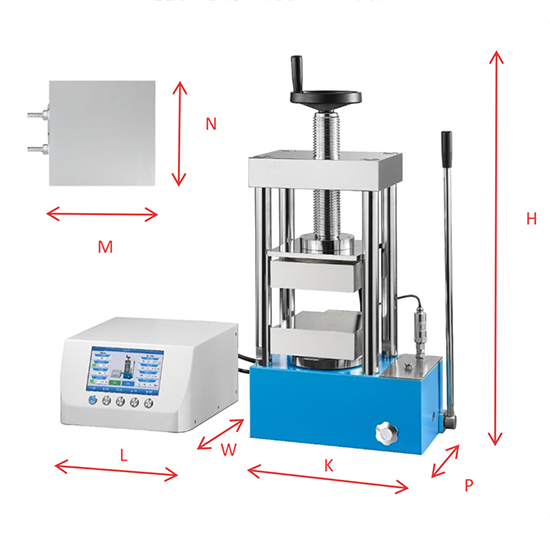

Diagram of hydraulic press
