Parameters:
|
Model |
PCD-600F |
|
|
Heating temperature |
RT-300℃ |
RT-500℃ |
|
Power |
4 KW |
6 KW |
|
Pressure range |
0-40T |
|
|
Pressure Accuracy |
0.1 Ton |
|
|
Temperature Control accuracy |
0.1℃ |
|
|
Pressurization process |
20-segment program pressurization with pressure profile display |
|
|
Holding time |
Each segment can hold up to 32768 seconds, or work indefinitely without timing |
|
|
Constant Temperature Time |
≥1S |
|
|
Display Screen |
7” Touch Screen |
|
|
Heating method |
Multi-stage Heating or Cooling Program |
|
|
Heating insulation method |
Imported Heating insulation board |
|
|
Cooling method |
Air / Water cooling (water chiller is optional) |
|
|
Heating area |
Double platens heating 400×400mm (M×N) |
|
|
Working space |
400×220mm |
|
|
Controlling part |
Dimension: 350×460×480mm (L×W×H) Net weight: 109kg Gross weight :126Kg |
|
|
Pressing part dimension |
900×700×1000mm (K×P×H) Net weight :580Kg Gross weight: 632Kg |
|
|
Water chiller |
Dimension : 550×340×430mm Net weight : 11kg |
|
|
Voltage |
220V /380V |
|
|

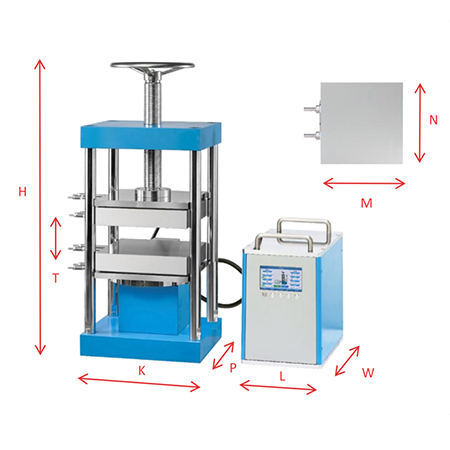

Diagram of hydraulic press |
|
|
