Model

PP-900L

Heating temperature

RT-1000℃

Power

2 KW

Pressure range

0-10T

Pressure Accuracy

0.01 Ton

Temperature Control accuracy

0.1℃

Pressurization process

Manual pressurization

Holding time

≥ 1S

Display screen

7” Touch Screen

Pressurization process

20 segment program pressurization with pressure profile display.

Holding time

Each segment can last up to 32768 seconds or work indefinitely without timing.

Furnace chamber diameter

Φ60mm

Oil cylinder stroke

80mm

Mold material

Nickel-based alloy (high temperature resistant material)

Sample size range

Φ 10 - 30mm

Mold shape

Φ50×90mm

Voltage

110 / 220V

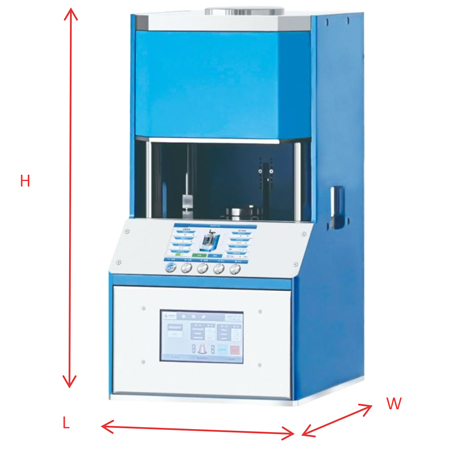

Dimension

Machine: 400×380×780mm (L×W×H)

Net weight :165Kg

Packing size:725×620×890mm

Gross weight: 201Kg

Diagram of hydraulic press
