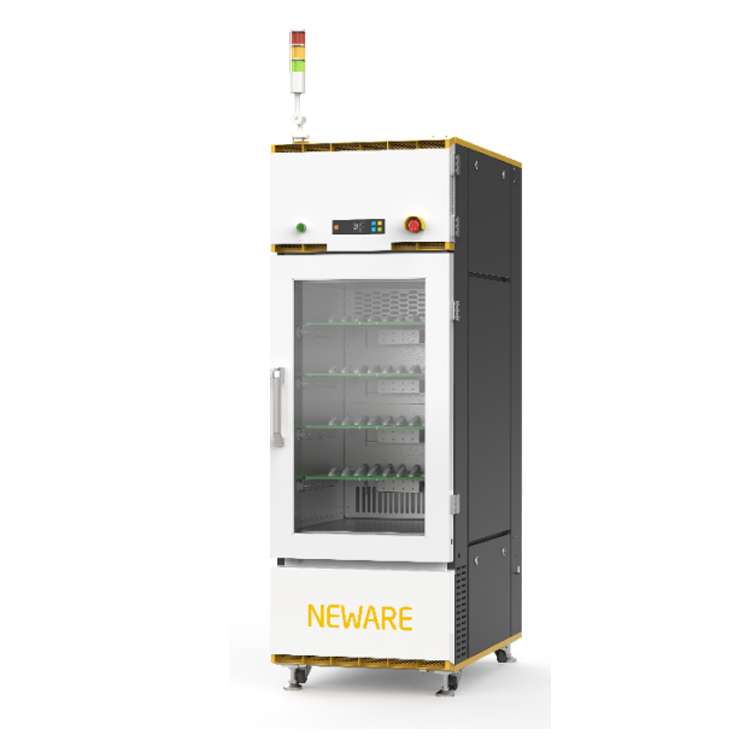

1. Material code

WHW-200L-0C-220V-5V100mA-160CH

2. Product application

Constant temperature testing is conducted for button cells, pouch cells, and cylindrical batteries.

Electronics, electrical equipment, instrumentation, materials, semiconductor manufacturers, and other industrial producers perform thermal stability tests on non-flammable, non-explosive materials.

Environmental protection agencies, agricultural/livestock/aquatic research institutions, and production facilities utilize controlled temperature environments for water quality analysis, bacterial/microbial culture preservation, as well as plant cultivation and breeding experiments.

3. Sample restriction

This testing equipment strictly prohibits:

The testing or storage of any samples containing flammable, explosive, or volatile substances; corrosive materials; strong electromagnetic emission sources; radioactive substances; highly toxic materials; as well as any samples that may generate such hazardous substances or objects during testing or storage procedures.

4. Volume, dimension and weight

4.1 Standard volume

200L

4.2 Inner size

W500 mm×D500 mm×H800 mm

4.3 External size

W600 mm×D920 mm×H1800 mm

4.4 Net weight

About 260kg

5. Performance

5.1 Operating

environment

Operating Temperature is +25℃, Relative humidity ≤ 85%, No samples situation

5.2 Test method

GB/T 5170.2-2017 Temperature test equipment

5.3 Temperature range

0～60℃

5.4 Temperature

 fluctuation

≤±0.5℃ (No loading, temperature stability)

5.5 Temperature

 deviation

±2.0℃ (No loading, temperature stability)

5.6 Rising time

25℃→60℃ ≤30 min (No loading, mean nonlinearity )

5.7 Cooling time

25℃→0℃ ≤50 min (No loading, mean nonlinearity )

6. Structure features

6.1 Thermal insulation

maintenance structure

l Shell materials: High quality cold rolled steel plate,Surface spray and baking paint treatment

l Inner materials: Stainless steel plate SUS304

Thermal insulation materials: Foaming PU (thickness 50mm)

6.2 The channel for air

conditioning

Axial flow fan, Heater, Evaporator

6.3 Standard

 Configuration

Chamber door: uni-fog armored glass, stainless steel frame

Channel hole: φ50mm, 4pcs (Behind the cabinet)

Caster: with foot break, 4pcs

Sample tray: insulation sample try, 4pcs; bearing load: 10kg/ layer

Lighting: LED

6.4 Control panel

Control panel touch control button

6.5 Heater

Stainless heating pipe

Heater control mode: contactless constant period pulse width modulation, SSR (solid state relay)

7. Cooling system

7.1 Cooling

 compressor

Totally enclosed piston compressor

7.2 Cooling method

Air cooling

7.3 Throttling gear

Capillary tube

7.4 Freezing medium

R134a

7.5 Welding

technology

Protection welding with nitrogen

8. Electric control system

8.1Controller

LED digital display + touchscreen

8.2Operating mode

Touchscreen

8.3 Control mode

Forced circulation ventilation balanced temperature control method. According to the set temperature value, the control system controls the output of the heater through the PID automatic calculation output result, so as to achieve dynamic balance

8.4 Communication

 mode

Ethernet port

8.5 Temperature

 controller module

Independent research and development (after high and low temperature shock, vibration and EMC related reliability performance testing)

9. Cell testing equipment and test interconnection

9.1 Testing machine

5PCS BT-4032Q-5V100mA-HWX

9.2 middle machine

One BT-4002-ZWJPLUS-HWX

9.3 Network switch

One
