Model

PP-600SX

Heating temperature

RT-300℃

RT-500℃

RT-800℃

Power

2.2 KW

3.4 KW

6 KW

Pressure range

0-25T

Pressure Accuracy

0.01 Ton

Temperature Control accuracy

0.1℃

Pressurization process

20 segment program pressurization with pressure profile display.

Holding time

Each segment can last up to 32768 seconds or work indefinitely without timing.

Glove box material

SS304

Vacuum degree

-0.1Mpa

Display Screen

7” Touch Screen

Heating method

Multi-stage Heating or Cooling Program

Heating insulation method

Imported Heating insulation board

Cooling method

Air / Water cooling

(water chiller is optional)

Heating area

Double platens heating

180×180mm (M×N), 200×200mm (M×N)

Working chamber

780×650×700mm

Transfer chamber

Φ240×260mm

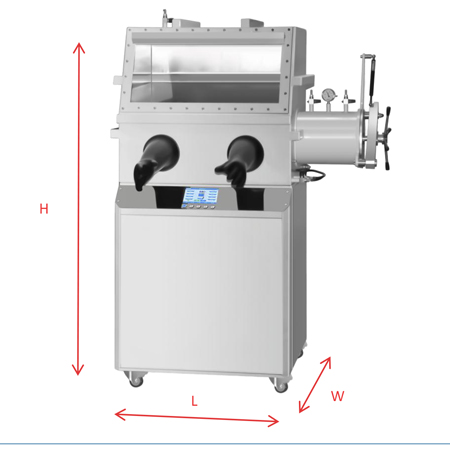

Dimension

Machine: 1200×950×1800mm (L×W×H)

Net weight :670Kg

Packing size:1400×1200×2000mm

Gross weight: 750Kg

Voltage

110V / 220V

Diagram of hydraulic press
