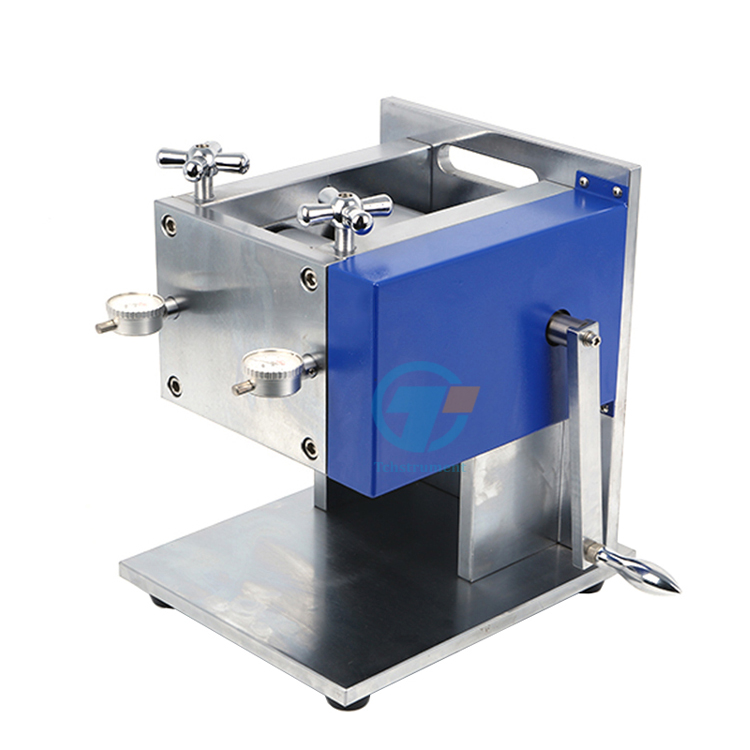

This compact manual Rolling Cylinder Press, which is designed for preparing battery electrode for both inside or outside glove-box. It can be used with the application such as increasing active material density of the electrode in Li-ion batteries research after coating.
Specification
|
Roller Size |
96mm(Dia.) x 100mm(W) (the width also can be designed according to your need) |
|
Press Thickness |
0~3 mm adjustable |
|
Minimum Thickness |
Depending on the electrode's material and thickness, typically: |
|
Roller |
1. Roller diameter tolerance: 0.004mm |
|
Roller Surface Hardness |
62 HRC |
|
Compliance |
CE Certificate |
|
Warranty |
One Year |
