Model

PP-100J

Pressure range

0-100 Ton

Piston diameter

200mm(d)

Max. piston stroke

50mm(T)

Pressurization process

20-stage programmed pressurization with pressure profile display.

Pressure holding time

Each stage can be up to 32768 seconds or run indefinitely without timing.

Pressure conversion

Automatically calculate the pressure exerted on the sample base on its shape and size.

Pressure display accuracy

0.01 Ton

Operation panel

7 inches (IPS high-definition) touch screen panel

Metal buttons

Silver-plated contacts with a service life of ＞100,000 cycles

Equipment protection

The upper cantilever structure is more convenient to operate.

Pressure safety

The device is equipped with automatic pressure overload protection

Limit switch

The hydraulic cylinder automatically relieves pressure when it reaches the limit height.

Max. Pressure

300 Mpa

Pressure Vessel

Φ60×150mm

Voltage

220V or 110V (500W)

Dimension (L×W×H)

330×580×720mm

Net weight

290kg

Packing information

725×680×890mm/ 320kg

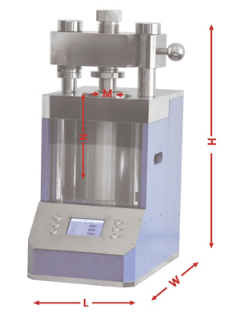

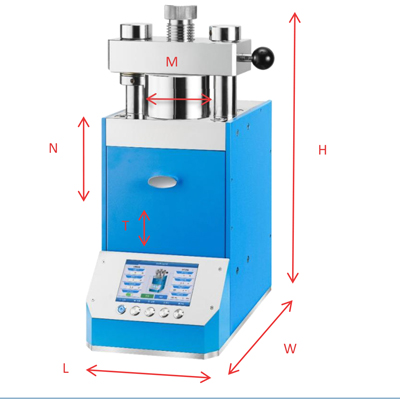

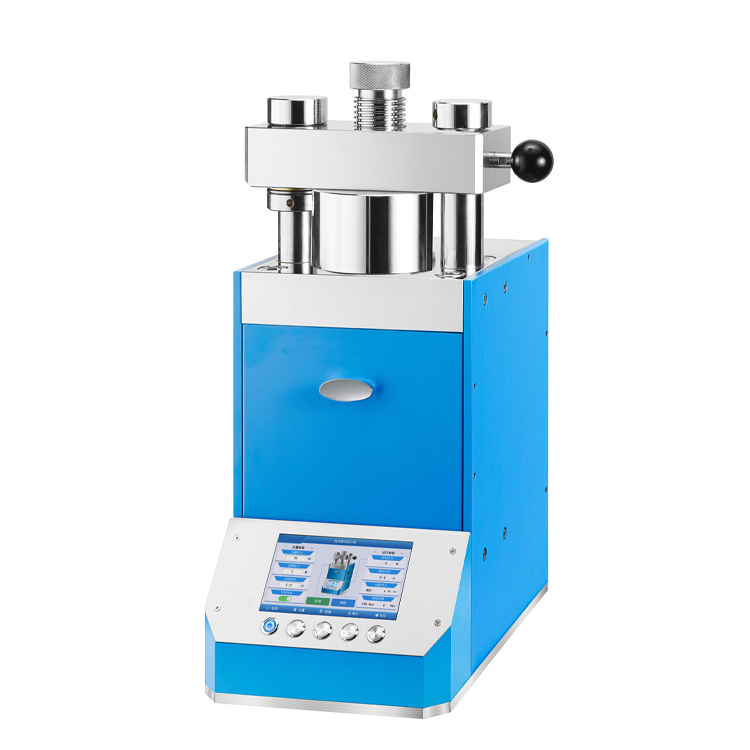

Diagram of the press
