Model

PP-100S

Pressure range

0.01 -100 T

Pressure display accuracy

0.01 Tons

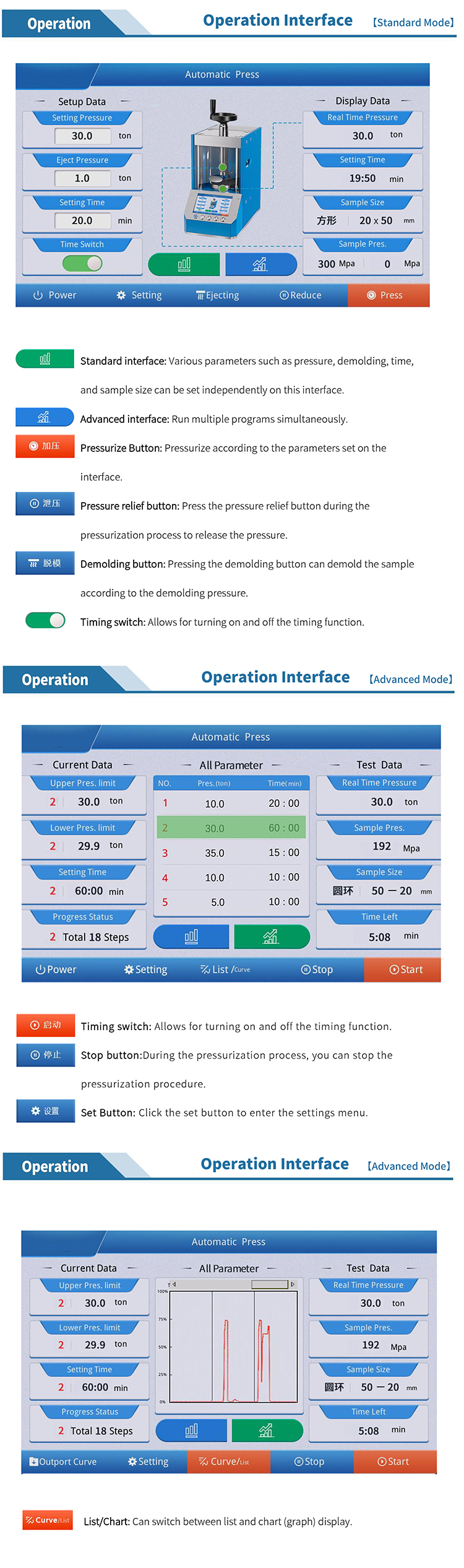

Display panel

5” touch screen panel

Metal button /key

Sliver-plated contacts, with a service life of over 100,000 cycles.

Pressure safety

The device has automatic pressure overload protection.

Limited switch

The oil cylinder automatically releases pressure when it reaches the limit height.

Cylinder stroke

50mm (T)

Curve graph

Can display each operation curve graph and support U disk download Excel file

Program control

up to 18 segments of program control

Speed adjustment

Pressure increasing speed is adjustable

Remote control

A computer is required to analyze, compare, modify, and export data.

Working space

185×200mm （M×N）

Voltage

110V / 220V

Power

500W

Dimension

Product size: 330×580×620mm (L×W×H)

Net weight: 320kg

Packing size:605×680×737mm

Gross weight:337 kg

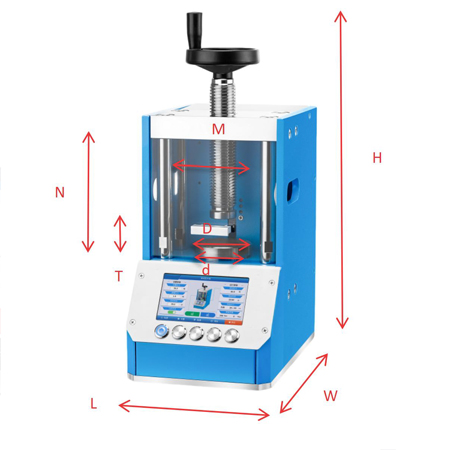

Dimensional diagram
