Model

PC-12J

Pressure range

0-12T (0-17MPa)

Piston diameter

Φ95mm (d)

Integral structure

No sealing connection, oil leakage reduced

Pressure gauge

Pressure and pressure intensity display

Lifting height of cylinder

40mm (T)

Protective cover

Plexiglass

Working temperature

10℃-40℃

Cavity pressure

0-300MPa

Working space

Φ22×70mm (M×N)

Dimension

305×195×530mm (L×W×H)

Weight

90kg

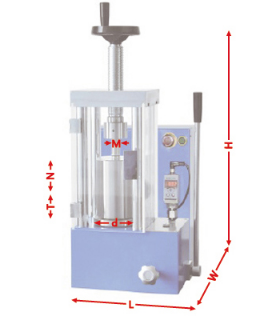

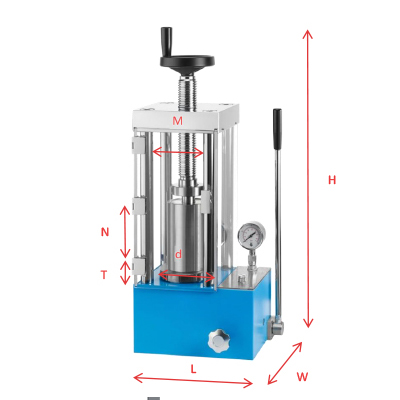

Diagram of hydraulic press
