Model

PC-12

Pressure range

0-12T(0-30Mpa)

Piston diameter

Φ70mm (d)

Integral structure

No sealing connection, oil leakage reduced

Pressure gauge

Pressure and pressure intensity display

Lifting height of cylinder

30mm (T) Max.

Pressure stability

≤1MPa/10min

Workbench diameter

Φ80mm (D)

Number of columns

Two

Working space

96*130mm (M*N)

Dimension

225*155*380mm (W*L*H)

Weight

28Kg

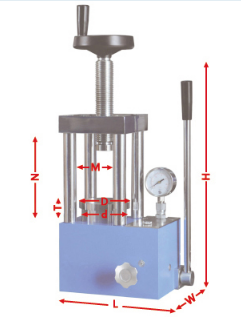

Diagram of hydraulic press size
