Model

PCD-12J

Pressure range

0-12 Ton

Piston diameter

95mm(d)

Max. piston stroke

40mm(T)

Integral structure

No sealing connection, oil leakage reduced.

Display accuracy

0.01T

Pressurization mode

Electric pressurization and manual pressurization.

Compensation mode

Automatic pressurization and manual gradual pressurization.

Gradual pressurization function

Programmable gradual pressurization speed.

Pressure conversion

Pressure conversion based on sample shape and size

Pressure protection

With pressure overload protection function

Working environment temp.

10℃-40℃

Isostatic pressure

Pressure Vessel(M×N)

0-300MPa

Φ22×70mm

Voltage

220V 50HZ/60HZ or 110V 60HZ  (550W)

Dimension (L×W×H)

305×195×530mm

Net weight

80kg

Packing information

305×330×650mm /97kg

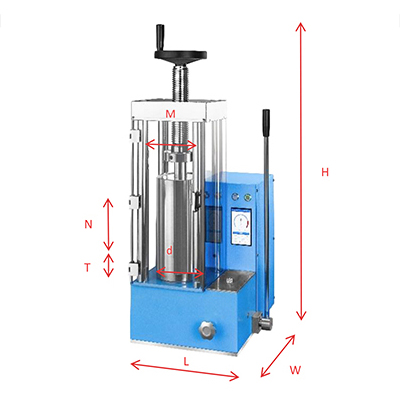

Diagram of the press
