Model

PP-150S

Pressure range

0-150.0 Ton

Working process

Programmed pressure relief

Pressure holding time

0-999 Sec

Intensity conversion

Automatic conversion of die pressure

LCD

4.3”

Equipment protection

Steel plate equipped with plexiglass door

Lifting height of cylinder

50mm (T)

Spatial size

200×260mm (M×N)

Dimension

400×620×620mm(L×W×H)

Power supply

220V, 50HZ/60HZ

Net weight

380kg

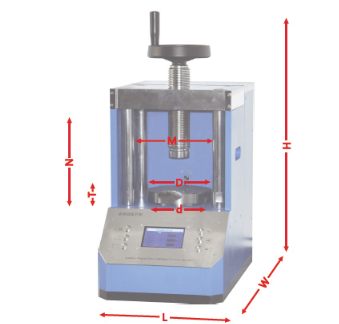

Diagram of hydraulic press size

Warranty

1 year
