Model

PCD-150J

Pressure range

0-150T

Pressurization process

20-stage programmed pressurization with pressure profile display.

Pressure holding time

Each stage can be up to 32768 seconds or run indefinitely without timing.

Pressure conversion

Automatically calculate the pressure exerted on the sample base on its shape and size.

Pressure display accuracy

0.01 Ton

Operation panel

7 inches (IPS high-definition) touch screen panel

Metal buttons

Silver-plated contacts with a service life of ＞100,000 cycles

Equipment protection

Steel plate with plexigass protective door

Pressure safety

The device is equipped with automatic pressure overload protection

Limit switch

The hydraulic cylinder automatically relieves pressure when it reaches the limit height.

Isostatic pressure

Pressure Vessel

0-300MPa

Φ80×150mm

0-500MPa

Φ60×150mm

Press device space(M×N)

280×400mm

Voltage

220V /110V (1500W)

Pressing part dimension

430×550×1080mm

Controlling part dimension

350×460×480mm /109kg

Net weight

680kg

Gross weight

750kg

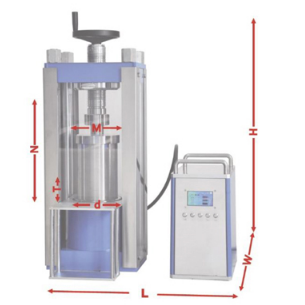

Diagram of the press
