Model

PC-15

Pressure range

0-15T(0-30Mpa)

Piston diameter

Φ80mm (d)

Integral structure

No sealing connection, oil leakage reduced

Pressure gauge

Pressure and pressure intensity display

Lifting height of cylinder

30mm (T) Max.

Pressure stability

≤1MPa/10min

Workbench diameter

Φ90mm (D)

Number of columns

Four

Working space

80*140mm (M*N)

Dimension

250*175*405mm (W*L*H)

Weight

40Kg

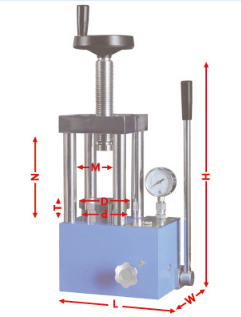

Diagram of hydraulic press size
