Model

PCD-20J

Pressure range

0-20 Ton

Piston diameter

110mm(d)

Max. piston stroke

40mm(T)

Integral structure

No sealing connection, oil leakage reduced.

Display accuracy

0.01T

Pressurization mode

Electric pressurization and manual pressurization.

Compensation mode

Automatic pressurization and manual gradual pressurization.

Gradual pressurization function

Programmable gradual pressurization speed.

Pressure conversion

Pressure conversion based on sample shape and size

Pressure protection

With pressure overload protection function

Working environment temp.

10℃-40℃

Isostatic pressure

Pressure Vessel(M×N)

0-300MPa

Φ30×150mm

0-500MPa

Φ22×150mm

Voltage

220V 50HZ/60HZ or 110V 60HZ  (550W)

Dimension (L×W×H)

305×430×600mm

Net weight

120kg

Packing information

725×620×890mm/ 151kg

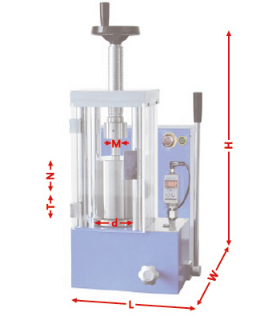

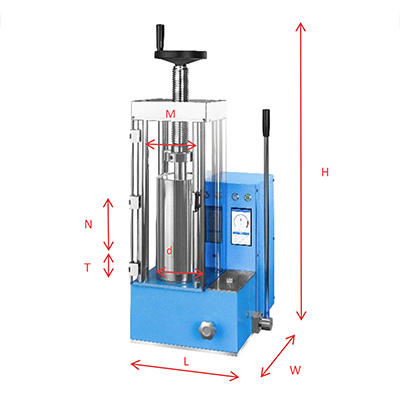

Diagram of the press
