Model

PP-20R

Pressure range

0-20T

Piston diameter

Φ130mm (d)

Cylinder stroke

50mm (T)

Pressurization process

20-stage programmed pressurization with pressure profile display.

Pressure holding time

Each stage can be up to 32768 seconds or run indefinitely without timing.

Pressure conversion

Automatically calculate the pressure exerted on the sample base on its shape and size.

Pressure display accuracy

0.01 Ton

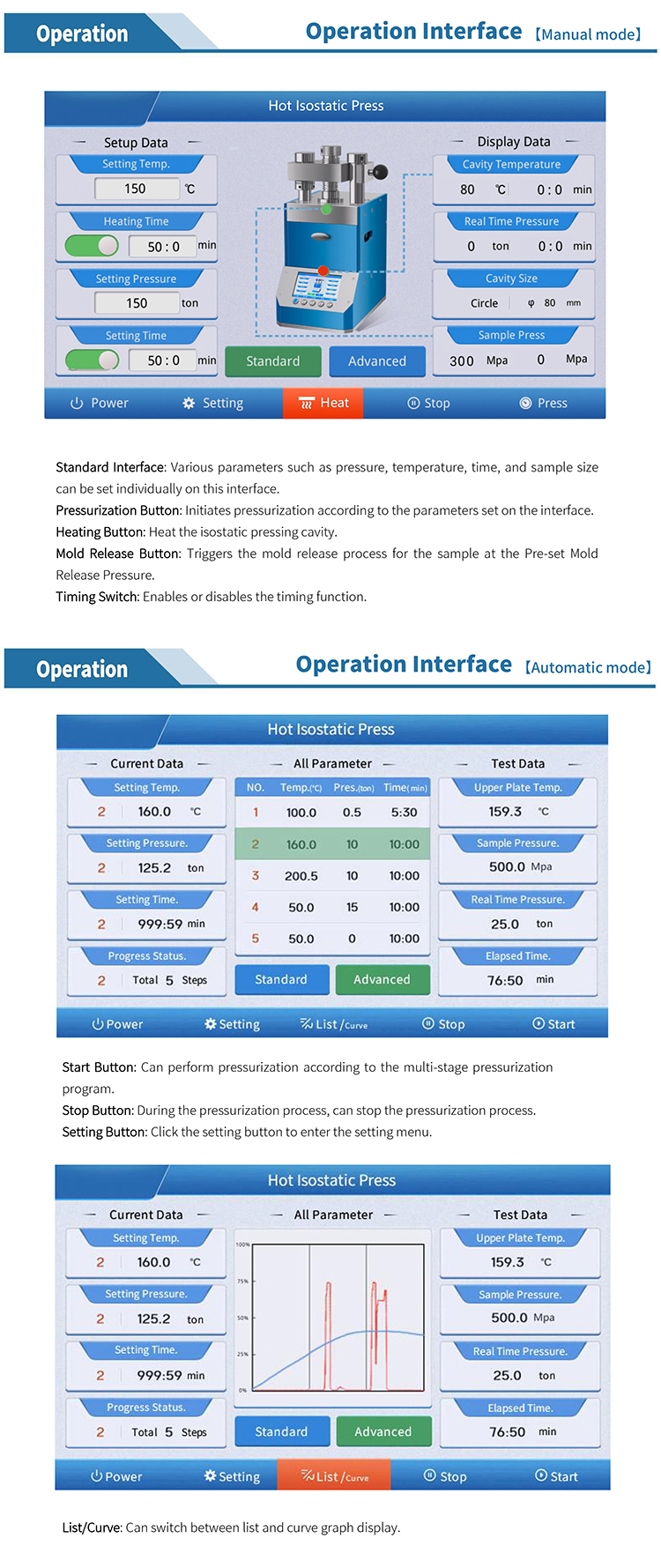

Operation panel

7 inches (IPS high-definition) touch screen panel

Metal buttons

Silver-plated contacts with a service life of ＞100,000 cycles

Equipment protection

The upper cantilever structure is more convenient to operate.

Pressure safety

The device is equipped with automatic pressure overload protection

Limit switch

The hydraulic cylinder automatically relieves pressure when it reaches the limit height.

Heating temperature

0-300℃

Max. pressure

300MPa

Isostatic pressure chamber

Φ30×150mm

Voltage

220V /110V

Power

1600W

Dimension (L×W×H)

280×460×660mm

Net weight

180kg

Packing information

725×620×860mm /216kg

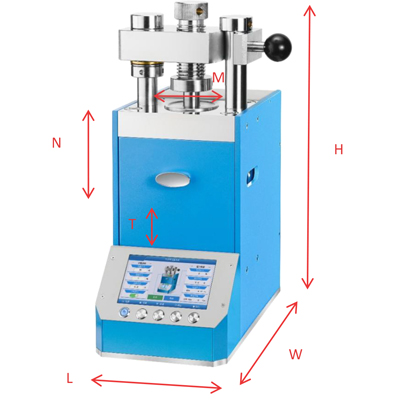

Diagram of hydraulic press
