Model

PC-2S

Pressure range

0-2T

Piston diameter

Φ32mm (d)

Integral structure

No sealing connection, oil leakage reduced

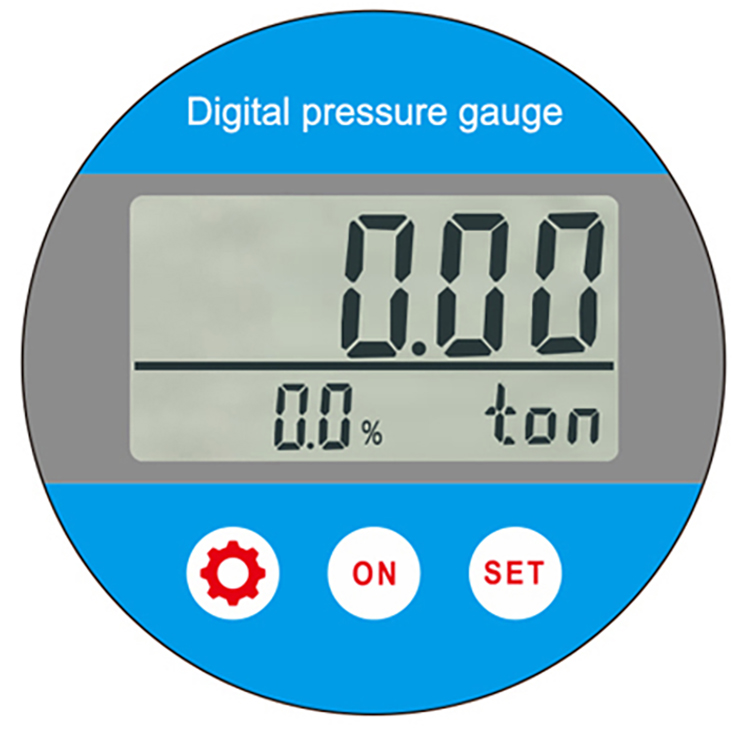

Pressure gauge

Digital display

Lifting height of cylinder

30mm (T) Max.

Pressure stability

≤1MPa/10min

Workbench diameter

Φ50mm (D)

Number of columns

Two

Working space

85*120mm (M*N)

Dimension

210*150*350mm (W*L*H)

Net Weight

12Kg

Diagram of hydraulic press size
