Model

PC-30

Pressure range

0-30T(0-31.5Mpa)

Piston diameter

Φ110mm (d)

Integral structure

No sealing connection, oil leakage reduced

Pressure gauge

Pressure and pressure intensity display

Lifting height of cylinder

40mm (T) Max.

Pressure stability

≤1MPa/10min

Workbench diameter

Φ120mm (D)

Number of columns

Four

Working space

92*160mm (M*N)

Dimension

275*195*420mm (W*L*H)

Weight

56Kg

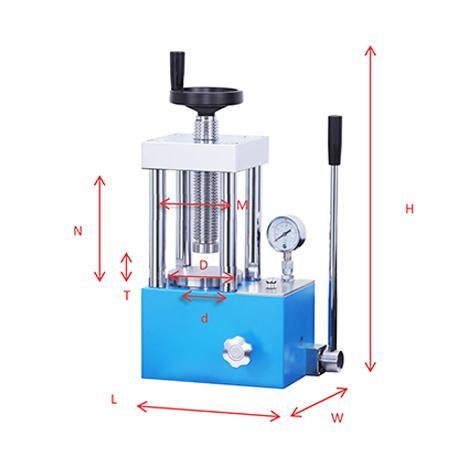

Diagram of hydraulic press size
