Model

PP-30X

Pressure range

0.01 -30 T

Pressure display accuracy

0.01 Tons

Display panel

7” touch screen panel

Pressurization process

20-stage program pressurization, can display pressure graph

Pressure Conversion

Automatically calculates the pressure the sample is subjected to based on the sample size.

Metal button /key

Sliver-plated contacts, with a service life of over 100,000 cycles.

Mold size

φ40mm or φ32mm built in mold

Mold type

Boric acid / Steel ring / Plastic ring / Aluminum Cup

Mold material

Stainless steel 440C

Demolding method

The upper plate cantilever structure automatically demoulds for easier operation.

Pressure safety

The equipment has automatic pressure overload protection

Curve graph

Can display each operation curve graph and support U disk download Excel file

Remote control

A computer is required to analyze, compare, modify, and export data.

Voltage

110V / 220V

Power

500W

Dimension

Product size: 250×390×460mm (L×W×H)

Net weight: 120kg

Packing size:605×410×700mm

Gross weight:156kg

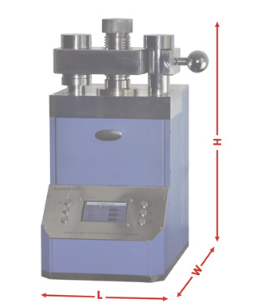

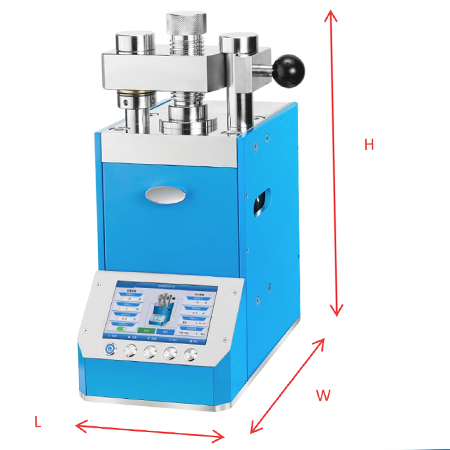

Dimensional diagram
