BASIC INFO
Parameters:
|
Model |
PC-3S |
|
Pressure range |
0-3T(28.8Mpa) |
|
Piston diameter |
Φ35mm (d) |
|
Integral structure |
No sealing connection, oil leakage reduced |
|

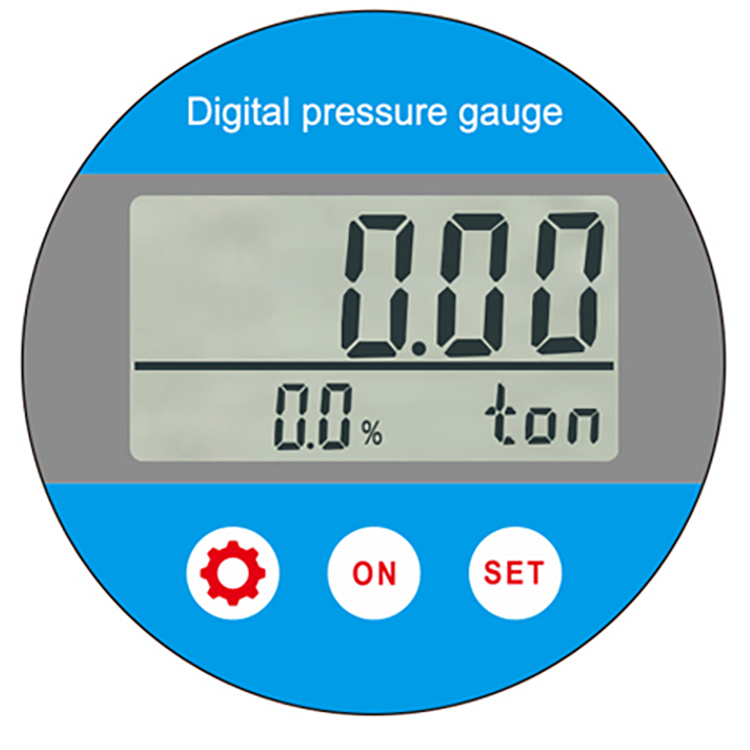

Pressure gauge |
Digital display 0.00-40.00MPa |
|
Lifting height of cylinder |
30mm (T) Max. |
|
Pressure stability |
≤1MPa/10min |
|
Workbench diameter |
Φ80mm (D) |
|
Number of columns |
Two |
|
Working space |
96*130mm (M*N) |
|
Dimension |
225*155*380mm (W*L*H) |
|
Weight |
28Kg |
|

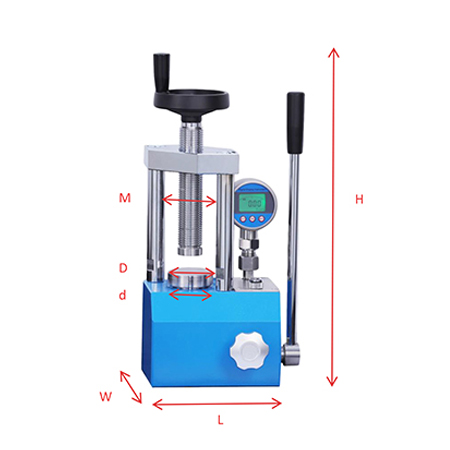

Diagram of hydraulic press size |
 |
