Model

PC-3

Pressure range

0-3T

Piston diameter

Φ50mm (d)

Integral structure

No sealing connection, oil leakage reduced

Pressure gauge

Pressure and pressure intensity display

Lifting height of cylinder

30mm (T) Max.

Pressure stability

≤1MPa/10min

Workbench diameter

Φ80mm (D)

Number of columns

Two

Working space

90*125mm (M*N)

Dimension

210*150*360mm (W*L*H)

Weight

20Kg

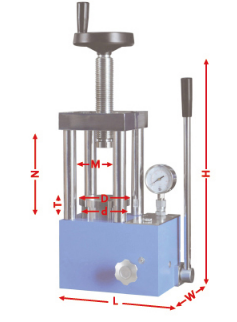

Diagram of hydraulic press size
