Parameters:
|
Model |
PC-40 |
|
Pressure range |
0-40T(0-30Mpa) |
|
Piston diameter |
Φ130mm (d) |
|
Integral structure |
No sealing connection, oil leakage reduced |
|
Pressure gauge |
Pressure and pressure intensity display |
|
Lifting height of cylinder |
50mm (T) Max. |
|
Pressure stability |
≤1MPa/10min |
|
Workbench diameter |
Φ140mm (D) |
|
Number of columns |
Four |
|
Working space |
106*185mm (M*N) |
|
Dimension |
295*215*500mm (W*L*H) |
|
Weight |
75Kg |
|

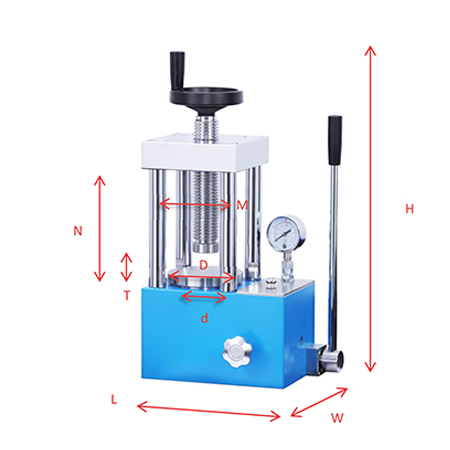

Diagram of hydraulic press size |
 |
