Model

PCD-40J

Pressure range

0-40 Ton

Piston diameter

130mm(d)

Max. piston stroke

50mm(T)

Integral structure

No sealing connection, oil leakage reduced.

Display accuracy

0.01T

Pressurization mode

Electric pressurization and manual pressurization.

Compensation mode

Automatic pressurization and manual gradual pressurization.

Gradual pressurization function

Programmable gradual pressurization speed.

Pressure conversion

Pressure conversion based on sample shape and size

Pressure protection

With pressure overload protection function

Working environment temp.

10℃-40℃

Isostatic pressure

Pressure Vessel(M×N)

0-300MPa

Φ40×150mm

0-500MPa

Φ30×150mm

Voltage

220V 50HZ/60HZ or 110V 60HZ  (550W)

Dimension (L×W×H)

355×450×710mm

Net weight

160kg

Packing information

725×620×890mm/ 196kg

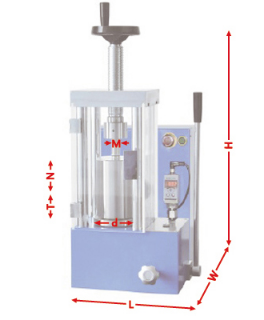

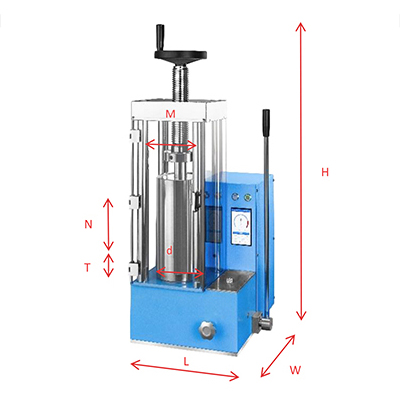

Diagram of the press
