Model

PP-40R

Pressure range

0-40T

Piston diameter

Φ150mm (d)

Cylinder stroke

50mm (T)

Pressurization process

20-stage programmed pressurization with pressure profile display.

Pressure holding time

Each stage can be up to 32768 seconds or run indefinitely without timing.

Pressure conversion

Automatically calculate the pressure exerted on the sample base on its shape and size.

Pressure display accuracy

0.01 Ton

Operation panel

7 inches (IPS high-definition) touch screen panel

Metal buttons

Silver-plated contacts with a service life of ＞100,000 cycles

Equipment protection

The upper cantilever structure is more convenient to operate.

Pressure safety

The device is equipped with automatic pressure overload protection

Limit switch

The hydraulic cylinder automatically relieves pressure when it reaches the limit height.

Heating temperature

0-300℃

Max. pressure

300MPa

Isostatic pressure chamber

Φ40×150mm

Voltage

220V /110V

Power

2000W

Dimension (L×W×H)

300×500×680mm

Net weight

240kg

Packing information

725×620×890mm /276kg

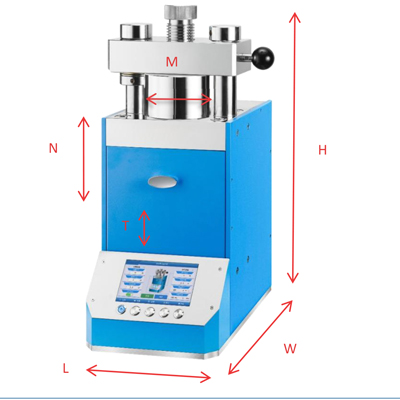

Diagram of hydraulic press
