Model

PC-5S

Pressure range

0-5T(0-31.4Mpa)

Piston diameter

Φ45mm (d)

Integral structure

No sealing connection, oil leakage reduced

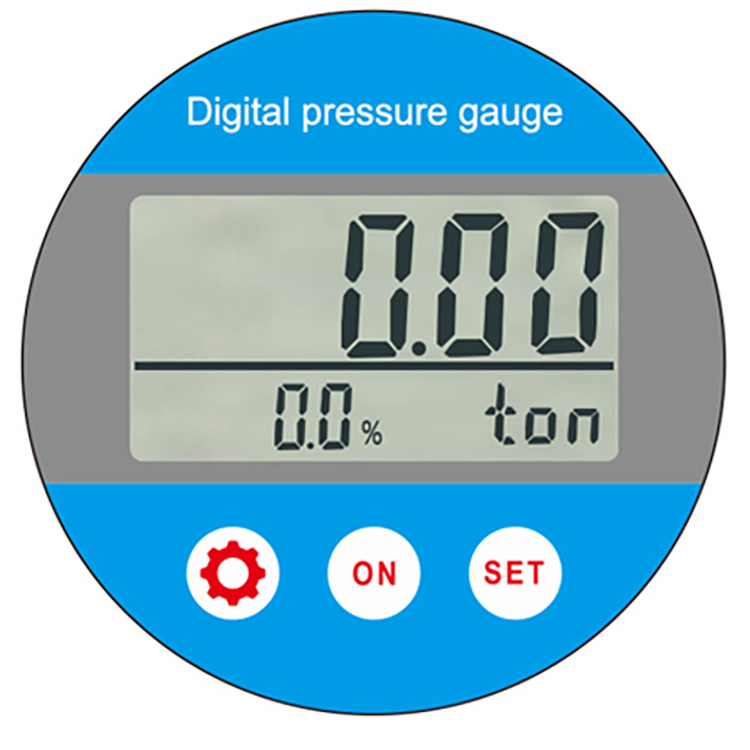

Pressure gauge

Digital display 0.00-40.00MPa

Lifting height of cylinder

30mm (T) Max.

Pressure stability

≤1MPa/10min

Workbench diameter

Φ80mm (D)

Number of columns

Two

Working space

96*130mm (M*N)

Dimension

225*155*380mm (W*L*H)

Weight

28Kg

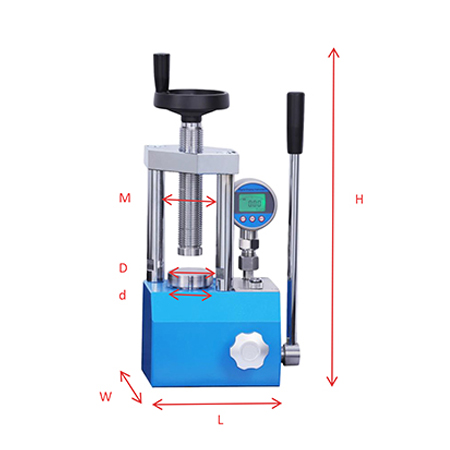

Diagram of hydraulic press size
