Parameters:
|
Model |
PC-60F |
|
Pressure range |
0-60T(0-34Mpa) |
|
Piston diameter |
Φ150mm (d) |
|
Integral structure |
No sealing connection, oil leakage reduced |
|
Pressure gauge |
Pressure and pressure intensity display |
|
Lifting height of cylinder |
50mm (T) Max. |
|
Protective cover |
Plexiglass |
|
Pressure stability |
≤1MPa/10min |
|
Workbench diameter |
Φ160mm (D) |
|
Number of columns |
Four |
|
Working space |
185*250mm (M*N) |
|
Dimension |
405*240*565mm (W*L*H) |
|
Weight |
120Kg |
|

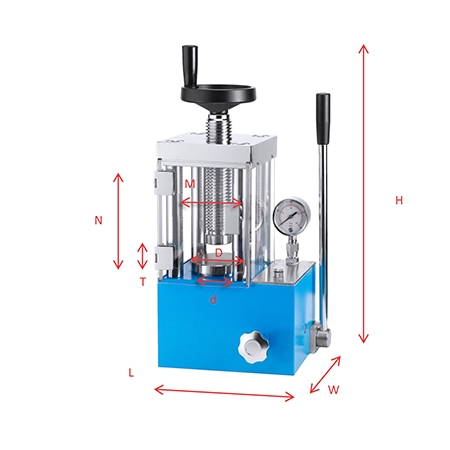

Diagram of hydraulic press size |
 |
