Model

PX-60

Pressure range

0 -60 T

Control method

touch screen panel operation, PLC program control

Pressure keeping time

No limit

Piston stroke

100mm

Column spacing

220mm

Mold size

φ40mm or φ32 mm built in mold

Mold type

 Boric acid / Steel ring / Plastic ring / Aluminum Cup

Dimension (L×W×H)

650×540×1240 mm

Net weight

360kg

Voltage

AC 380V , 3 Phases , 50HZ

Power

1.3 Kw

Equipment cable

five wires (three live wires + neutral wire + ground wire),

Length：2m (can be made according to your need)

Hydraulic oil model

L-MH46 high-pressure anti-wear hydraulic oil

Working environment

10-40℃

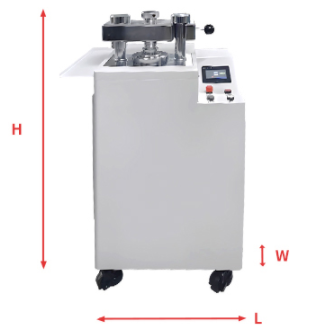

Dimensional diagram
