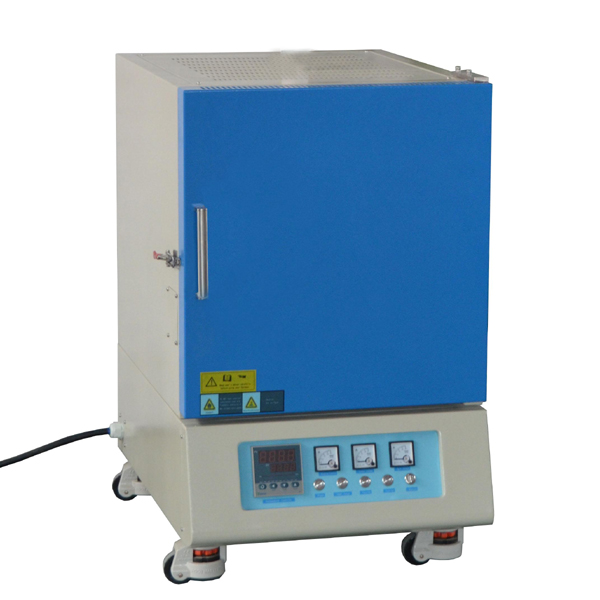

Model

TCHKF1400-1

TCHKF1400-II

TCHKF1400-III

TCHKF1400-IV

Chamber size

(DXWXH mm)

160x150x150

200X200X200

300X200X200

300X250X250

Power

3Kw

5Kw

7Kw

9Kw

Voltage

220V

220V

220V

380V

Max. Temp.

1400℃

Working temp.

≤1300℃

Heating elements

SiC rods

Heating rate

≤30℃/min suggest heating rate：≤15℃/min

Thermocouple

S type

Temp. controller

PID automatic controller with 30 programmable segments for precise control of heating rate, cooling rate and dwell time.

Built-in overheating & broken thermocouple protection.

Over temperature protection and alarm allows for operation without attendant(s).

+/- 1 ºC temperature accuracy.

Three K-type thermocouples (one for each zone).

Optional:

For other kinds temperature controller we can designed according to your need.

Surface temp.

≤45℃

Warranty

One-year limited warranty with lifetime support

(Any damages caused by the use of corrosive and acidic gasses are not covered by the Warranty.)
