Parameters:
|
Model |
PCH-600A |
|
|
Heating temperature |
RT-300℃ |
RT-500℃ |
|
Power |
0.3 KW |
0.5 KW |
|
Pressure range |
0-15T |
|
|
Temperature Control accuracy |
0.1℃ |
|
|
Integral structure |
No sealing connection, oil leakage reduced |
|
|
Constant Temperature Time |
≥1S |
|
|

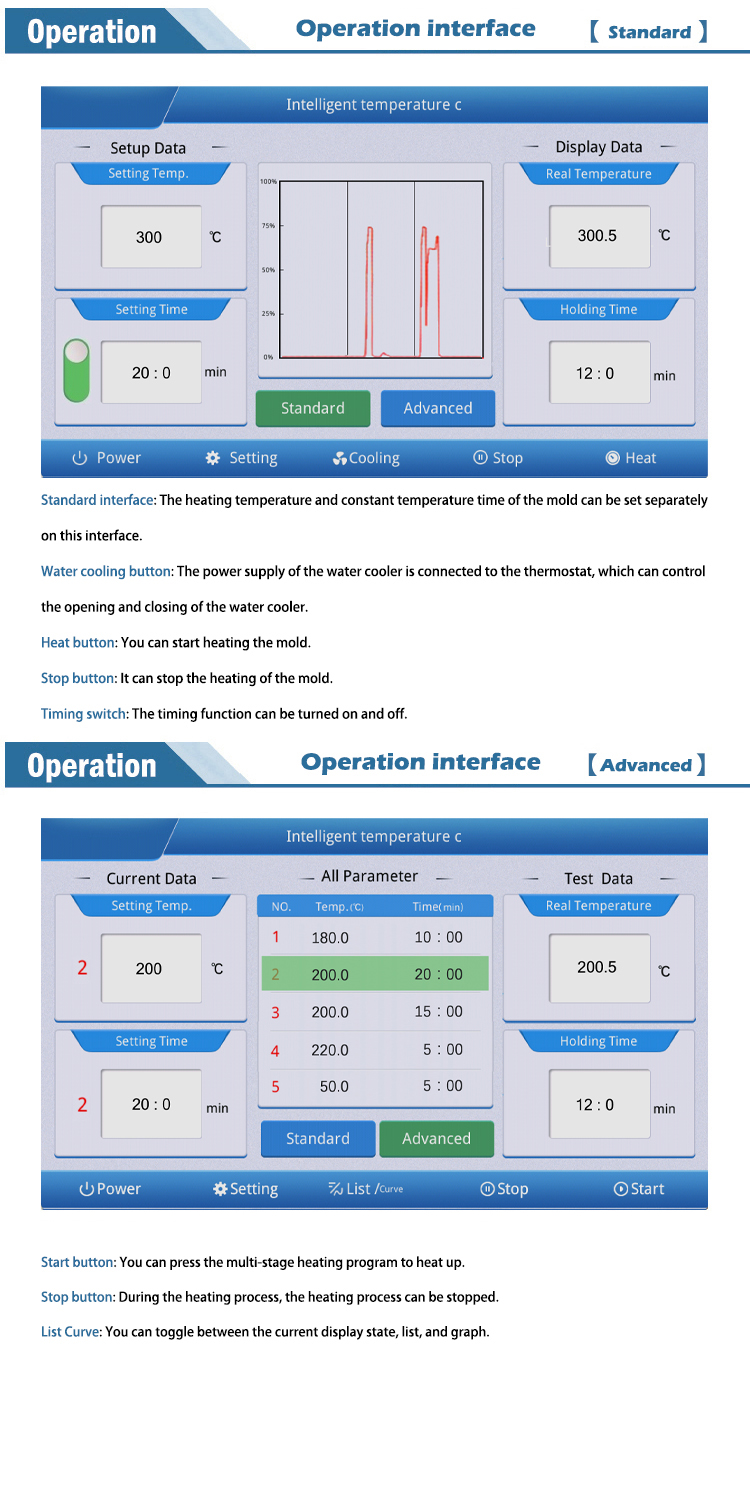

Display Screen |
7” Touch Screen |
|
|

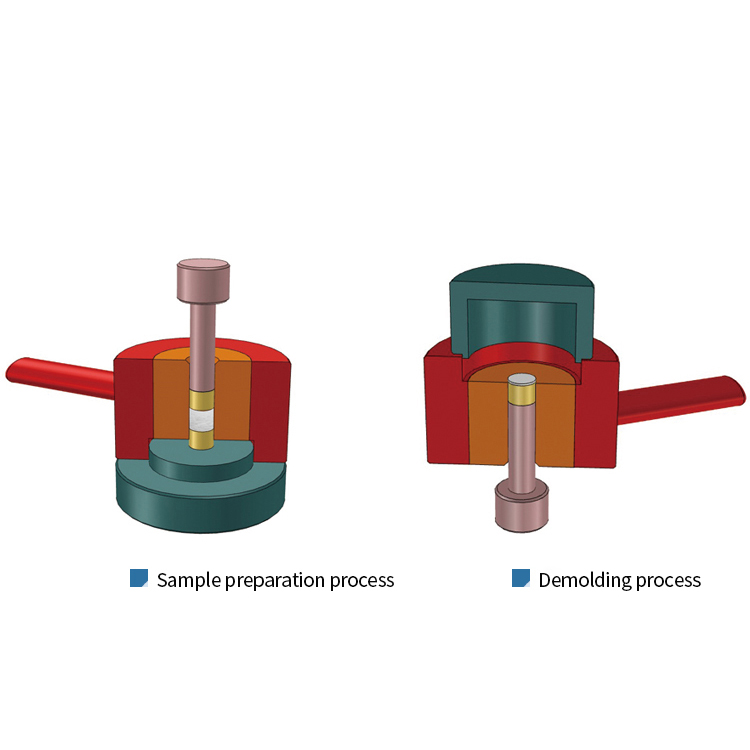

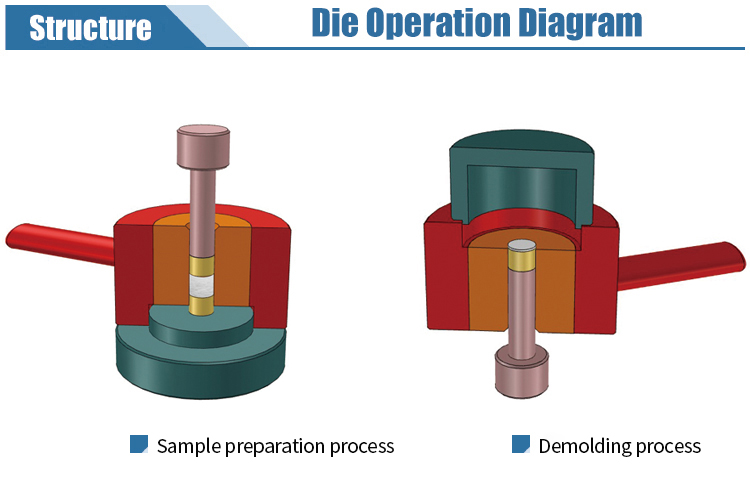

Heatable pressing die set |
＜20mm （larger sizes can be customized with extra csot） |
|
|
Heating insulation method |
Imported Heating insulation board |
|
|
Cooling method |
Air / Water cooling (water chiller is optional) |
|
|
Controlling part |

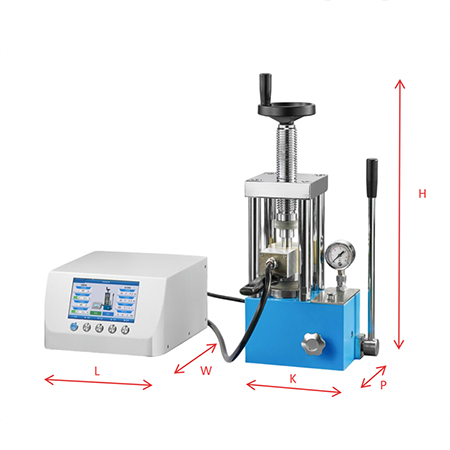

Dimension: 490×395×235mm (L×W×H) Net weight: 9.5Kg Gross weight :26.5 Kg |
|
|
Pressing part dimension |
245×175×415mm (K×P×H) Net weight :60Kg Gross weight: about 96Kg |
|
|
Water chiller |
Dimension : 550×340×430mm Net weight : 11kg |
|
|
Voltage |
110V / 220V |
|
|
Diagram of hydraulic press |
|
|
