Model |
PCH-600C |
|
|
Heating temperature |
RT-300℃ |
RT-500℃ |
|
Power |
0.5 KW |
0.8 KW |
|
Pressure range |
0-24T |
|
|
Pressure Accuracy |
0.01 Ton |
|
|
Temperature Control accuracy |
0.1℃ |
|
|
Piston diameter |
Chrome-plated oil cylinder Φ95mm(d) |
|
|
Integral structure |
No sealing connection, oil leakage reduced |
|
|
Display Screen |
7” Touch Screen |
|
|
Heating method |
Multi-stage Heating or Cooling Program |
|
|
Heating insulation method |
Imported Heating insulation board |
|
|
Cooling method |
Air / Water cooling (water chiller is optional) |
|
|

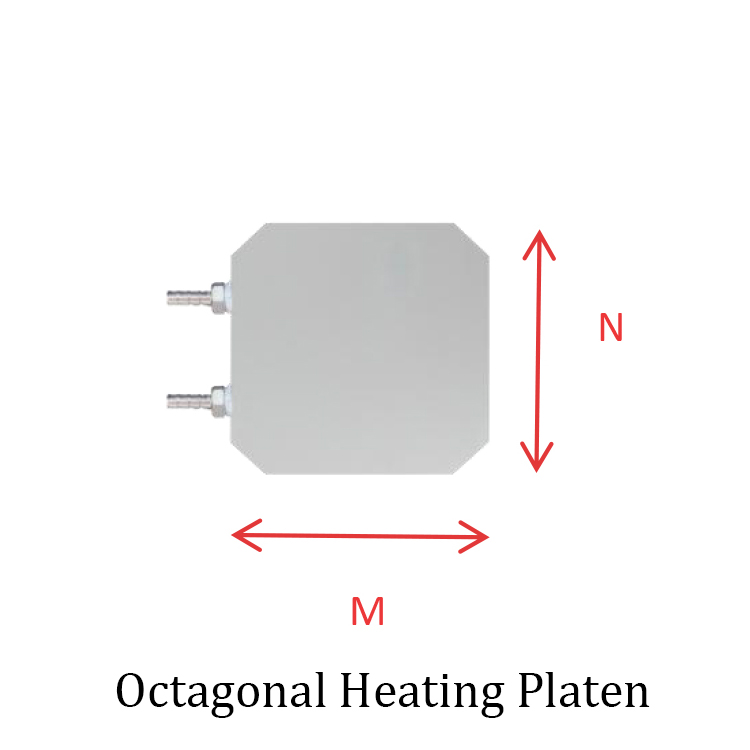

Heating area |
Double platens heating100×100mm (M×N) |
|
|
Working space |
80×130mm |
|
|
Controlling part |
Dimension: 490×395×235mm (L×W×H) Net weight: 9.5Kg Gross weight :26.5 Kg |
|
|
Pressing part dimension |
600×300×550mm (K×P×H) Net weight :60Kg Gross weight: 96Kg |
|
|
Water chiller |
Dimension : 550×340×430mm Net weight : 11kg |
|
|
Voltage |
220V, 50/60Hz |
|
|

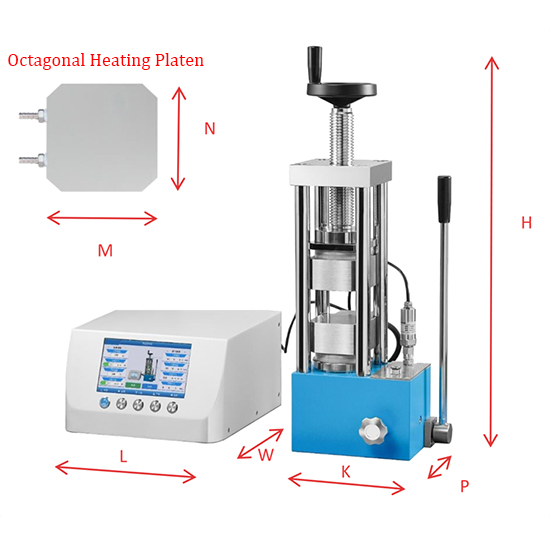

Diagram of hydraulic press |
|
|
