Parameters:
Model |
PCD-200S |
Pressure range |
0-200.0T |
Piston diameter |
Φ290mm (d) |
Working process |
Programmed pressure relief |
Pressure holding time |
0-999.59 Sec. |
Intensity conversion |
Automatic conversion of die pressure |
LCD |
4.3” |
Equipment protection |
Steel plate equipped with plexiglass door |
Lifting height of cylinder |
50mm (T) Max. |
Working space |
290*300mm (M*N) |
Dimension |
1000*650*1050mm (W*L*H) |
Voltage |
220V , 50/60Hz |
Weight |
850Kg |

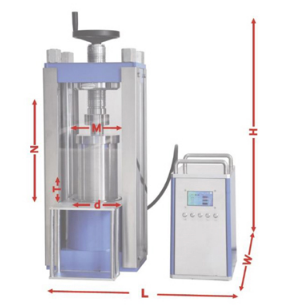

Diagram of hydraulic press size |
|
