Model

PCD-20S

Pressure range

0-20T(0-28Mpa)

Piston diameter

Chrome-plated cylinder Φ95mm (d)

Integral structure

No sealing connection, oil leakage reduced

Pressure display accuracy

.0.1 Tons

Max. Piston stroke

30mm (T) Max.

Pressure stability

≤1MPa/10min

Working space

112×160mm (M × N)

Safety shield

Acrylic glass door for safety protection.

Workbench diameter

Φ120mm (D)

Number of columns

Four

Pressurization method

Automatic program pressurization / manual gradual pressurization for precise pressure control

Gradual pressurization function

Programmable gradual pressurization speed.

Pressure protection

With pressure overload protection function

Working space

112*160mm (M*N)

Dimension

Machine :305*390*440mm (L*W*H)

Net weight: 85Kg

Packing size:605*407*700mm

Gross weight: 105Kg

Voltage

220V / 110V

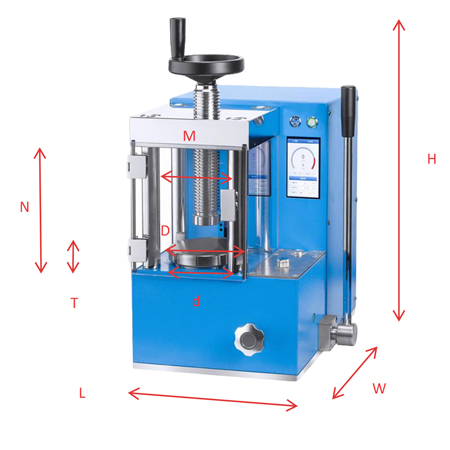

Diagram of hydraulic press size
