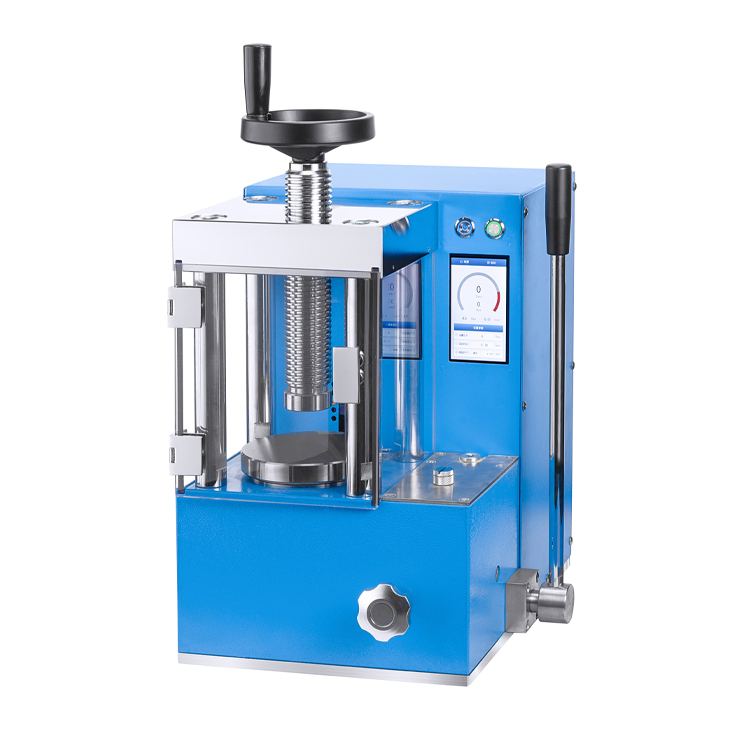

Model

PCD-40S

Pressure range

0-40T

Piston diameter

Chrome-plated cylinder Φ130mm (d)

Integral structure

No sealing connection, oil leakage reduced

Pressure display accuracy

0.1 Tons

Max. Piston stroke

50mm (T) Max.

Pressure stability

≤1MPa/10min

Working space

112×160mm (M × N)

Safety shield

Acrylic glass door for safety protection.

Workbench diameter

Φ140mm (D)

Number of columns

Four

Pressure unit conversion

Pressure coversion based on sample shape

Pressurization method

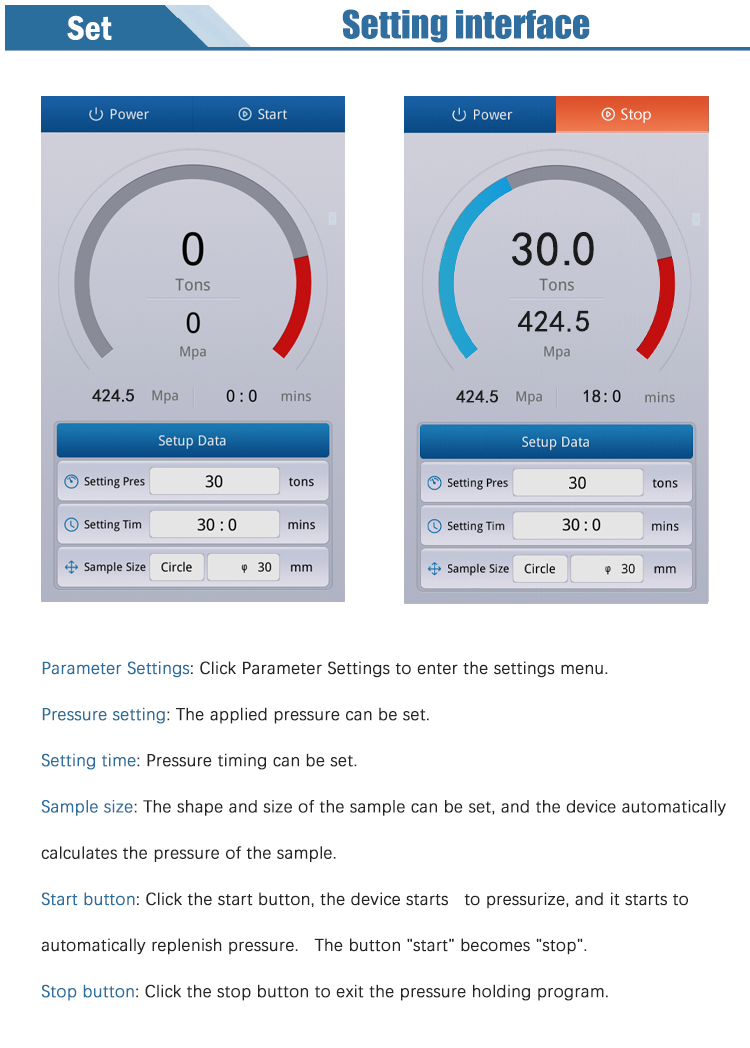

Automatic program pressurization / manual gradual pressurization for precise pressure control

Gradual pressurization function

Programmable gradual pressurization speed.

Pressure protection

With pressure overload protection function

Working space

136*180mm (M*N)

Dimension

Machine :352*420*510mm (L*W*H)

Net weight: 115Kg

Packing size:605*407*700mm

Gross weight: 132Kg

Voltage

220V / 110V

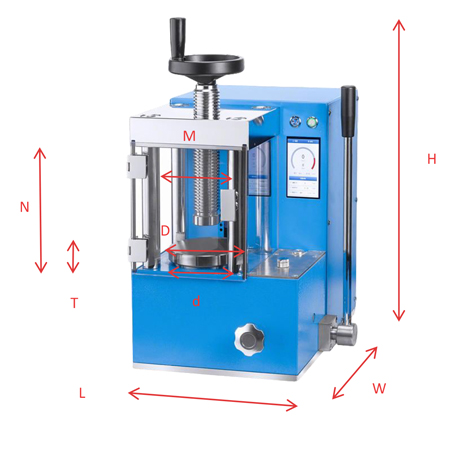

Diagram of hydraulic press size
