Model

PCD-60S

Pressure range

0-60T

Piston diameter

Chrome-plated cylinder Φ150mm (d)

Integral structure

No sealing connection, oil leakage reduced

Pressure display accuracy

0.1 Tons

Max. Piston stroke

50mm (T) Max.

Pressure stability

≤1MPa/10min

Working space

180×210mm (M × N)

Safety shield

Acrylic glass door for safety protection.

Workbench diameter

Φ160mm (D)

Number of columns

Four

Pressure unit conversion

Pressure conversion based on sample shape

Pressurization method

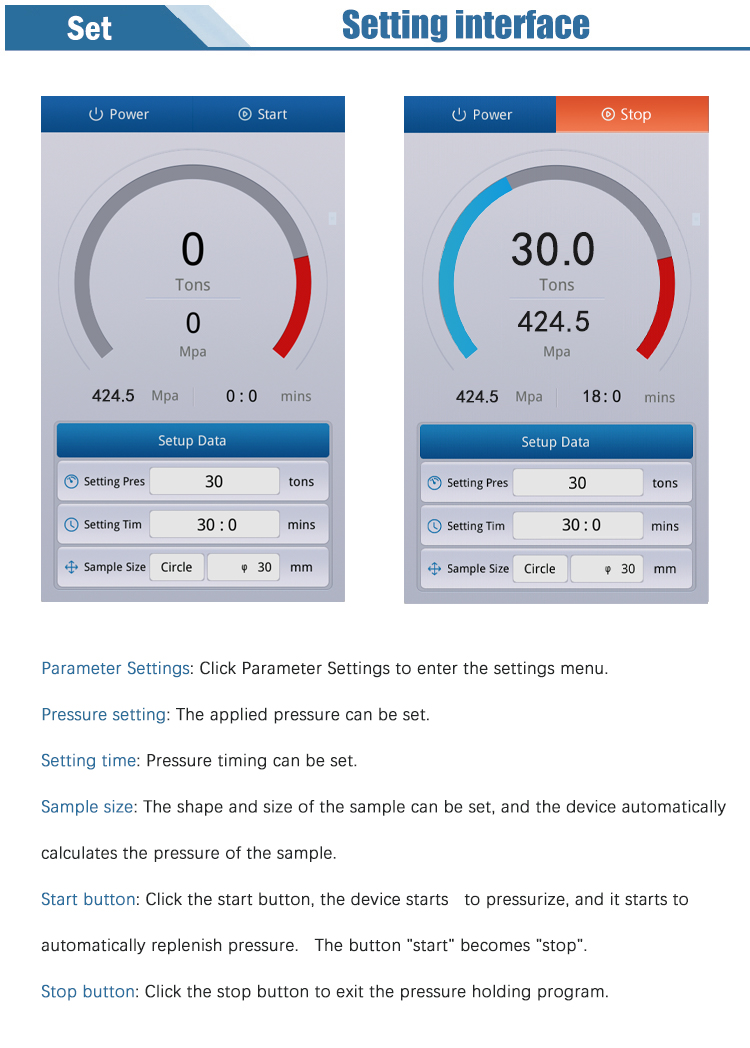

Automatic program pressurization / manual gradual pressurization for precise pressure control

Gradual pressurization function

Programmable gradual pressurization speed.

Pressure protection

With pressure overload protection function

Dimension

Machine :400*470*560mm (L*W*H)

Net weight: 165Kg

Packing size:605*570*700mm

Gross weight: 182Kg

Voltage

220V / 110V

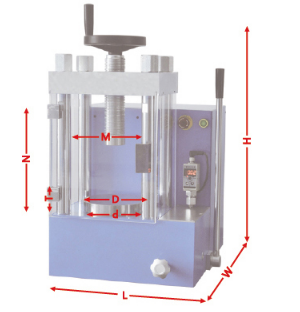

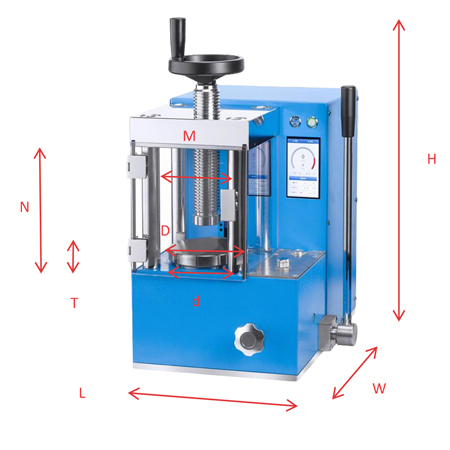

Diagram of hydraulic press size
