BASIC INFO
Parameter
|
Model |
PCH-PA |
|
Sample shape |
|
|
Die heating temp. |
0℃-300℃ |
|
Die material |
Alloy tool steel: Cr12MoV |
|
Indenter Hardness |
HRC60-HRC62 |
|
Sample sample |
＜Φ100mm(M) |
|
Sample thickness |
0.02-0.1mm(N) |
|
Dimension |
Dimension 1 : 180×180×130mm (L×W×H) Dimension 2: 200×200×130mm (L×W×H) Dimension 3 : 300×300×130mm (L×W×H) |
|
Voltage |
220V / 110V |
|
Weight |
32Kg / 38Kg / 88Kg |
|

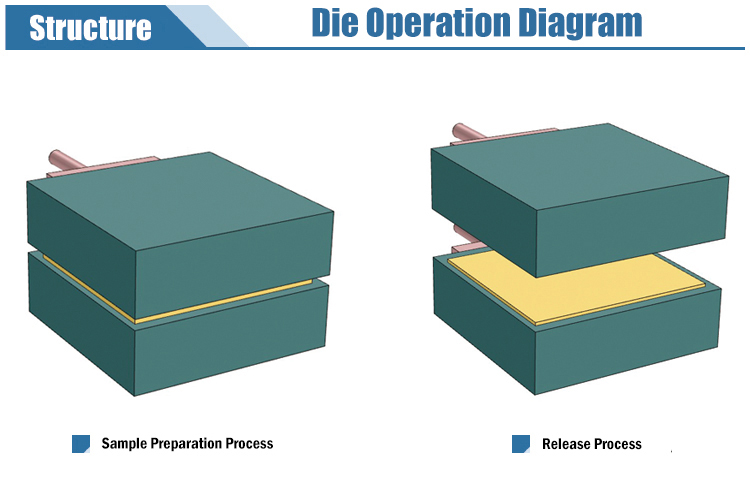

Diagram of the pressing die |
 |
Note:Customized size is available, we can design it according to your need.
