Model

PCH-GA

Sample shape

Die heating temp.

Room temperature -500℃

Die material

Alloy tool steel: Cr12MoV

Indenter Hardness

HRC60-HRC62

Sample sample

＜Φ180mm(M)

Sample thickness

0.02-0.1mm(N)

Dimension

Dimension 1 : 180×180×130mm (L×W×H)

Dimension 2 : 200×200×130mm (L×W×H)

Dimension 3 : 300×300×130mm (L×W×H)

Voltage

220V, 50/60Hz

Weight

12Kg

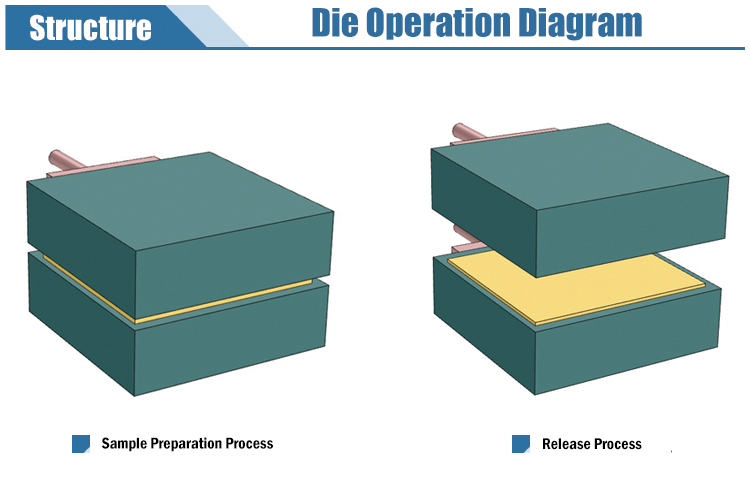

Diagram of the pressing die
