BASIC INFO
Parameter
|
Model |
PCH-M |
|
Sample shape |
|
|
Die heating temp. |
0℃-300℃ |
|
Die material |
Alloy tool steel: 440C |
|
Indenter Hardness |
HRC60-HRC62 |
|
Sample size |
Φ10mm/Φ15mm/Φ20mm/Φ30mm/Φ40mm (M)
(Customized size is available ) |
|
Cavity depth |
40mm(N) |
|

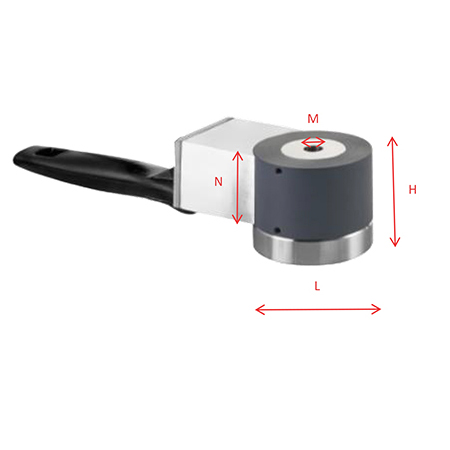

Dimension |
Φ78-105 ×138mm (L×H) |
|
Power |
300W |
|
Voltage |
220V /110V |
|
Weight |
About 10Kg |
|

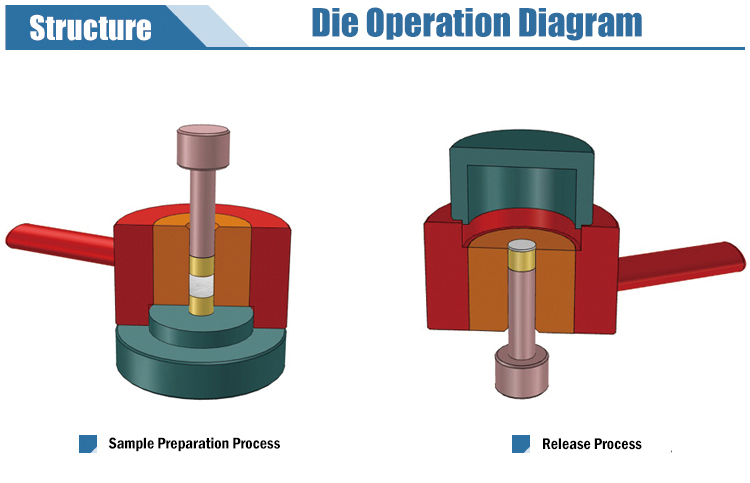

Diagram of the pressing die |
 |
Note:Customized size is available, we can design it according to your need.
