Model

PCD-65S [split type ]

Pressure range

0-65T

Piston diameter

Chrome-plated cylinder Φ160mm (d)

Display panel

7” touch screen panel

Safety shield

Acrylic glass

Pressure display accuracy

0.1 Tons

Max. Piston stroke

50mm (T) Max.

Pressurization process

20-stage programmed pressurization with pressure profile display.

Pressure holding time

Each stage can be up to 32768 seconds or run indefinitely without timing .

Pressure conversion

Automatically calculate the pressure exerted on the sample based on its shape and size.

Pressure protection

With pressure overload protection function.

Gradual pressurization function

Programmable gradual pressurization speed.

Workbench diameter

Φ170mm (D)

Number of columns

Four

Pressure unit conversion

Pressure conversion based on sample shape

Pressurization method

Automatic program pressurization / manual gradual pressurization for precise pressure control

Working space

220*300mm (M*N)

Dimension

Press Part :400*470*560mm (L*W*H) 165kg

Controlling part : 350*460*480mm (K*P*H)109 Kg

Gross weight: 308Kg

Voltage

220V / 110V

Power

1500W

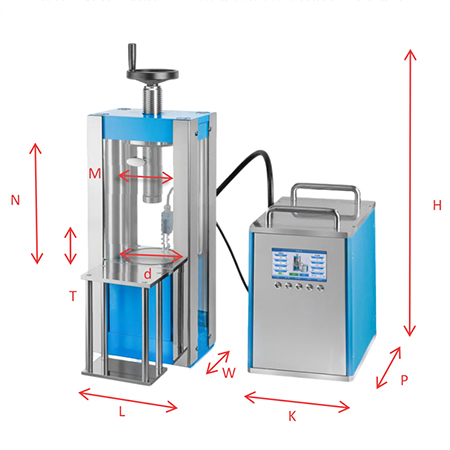

Diagram of hydraulic press size
