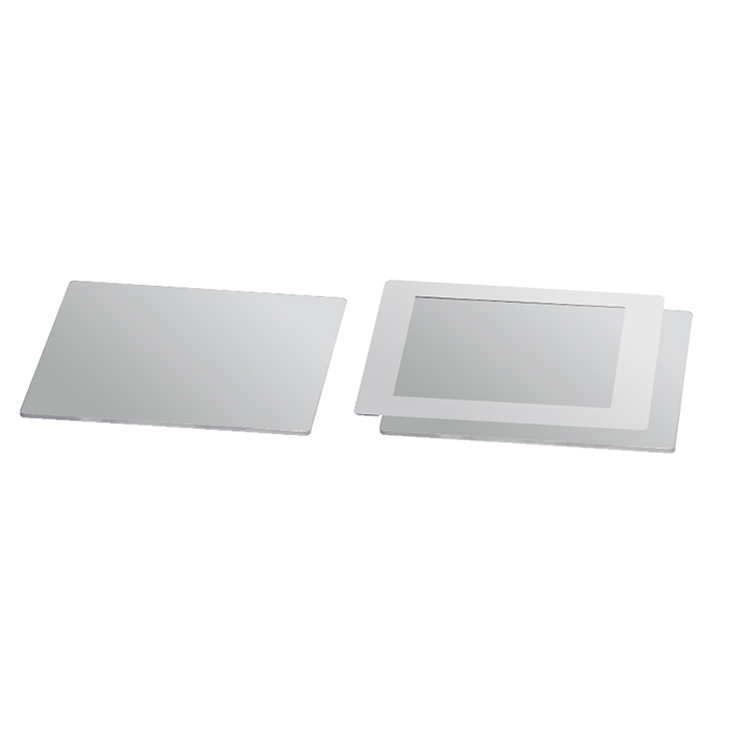

This Shaping mold used on hot press to make exact thickness and exact shape samples.
Internal shape and thickness can be customized.
Specification
Model
PCH-F
Heating temperature
Room temperature - 500℃
Mold material
SS304
Sample size
Regular rectangles or bone shapes are available, and customerized designes are also can be designed according to your requirement.
Sample thickness
0.75mm, 1.35mm, 1.75mm , 2.75mm
Overall dimension
80*80mm, 180*180mm, 200*200mm (L*H)
Mold weight
0.4Kg, 0.8Kg, 1.0kg

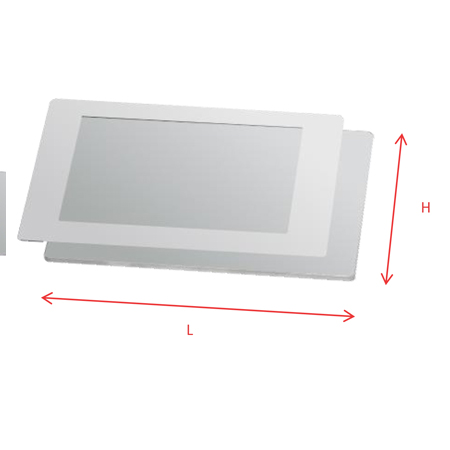

Dimension diagram
